> > WaterNET-CAD

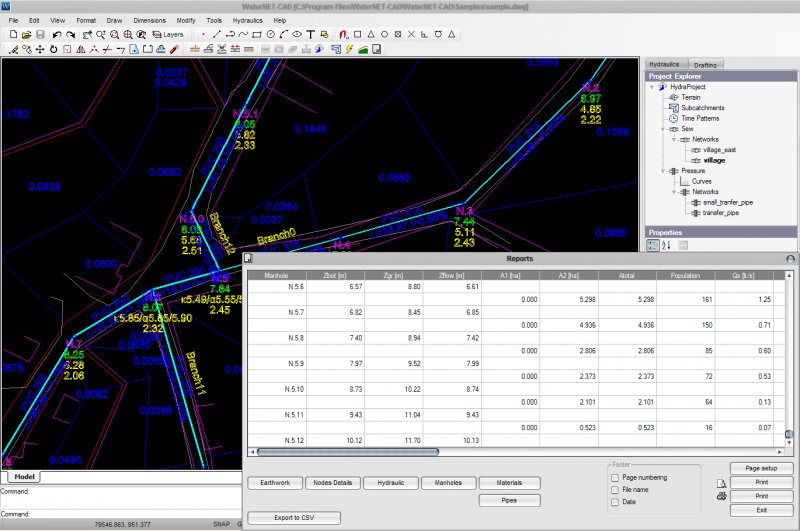

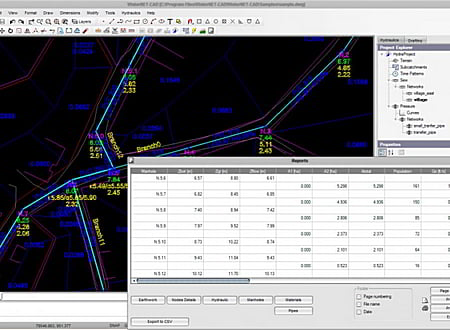

WaterNET-CAD screenshot
SOFTWARE :WaterNET-CAD
DEVELOPER :Diolkos3D
VERSION :2.0
PLATFORM :Windows
FILE SIZE :23.75 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:302
WaterNET-CAD Description

The WaterNET-CAD is software product that can be used in order to create, edit and analyze any kind of sewer, water distribution, storm or vacuum sewer network facility. Include a number of powerful functions for hydraulic network analysis integrated in a rich CAD environment involving all well known (2D) CAD commands for drawing production.

Main features

  • Autonomous software organized in modules.
  • Design for sewer, vacuum sewer, water distribution and stormwater network facilities.
  • Integrated within rich CAD environment.
  • Automatic subcatchment division.
  • Multiple networks in one project.
  • Hydraulic calculation based on EPANET and SWMM computational libraries.
  • Quick manage of large networks.

Capabilities

  • Complete and robust solution for designing all types of pipes network projects within rich CAD environment.
  • The program includes a great number of well known commands to edit graphic objects such as (Copy, Move, Rotate, Offset, trim etc). Export / Import of drawings with file format like DWG and DXF. Raster image insertion capability.
  • Design drawings for pipes connectivity in plan, profiles for all branches in network. Trenches sections based on backfill material and pavement restoration type.
  • Quick and easy insertion and modification of network geometry using graphic object modification commands, properties dialog or grips.
  • Each pipe is defined as a single polyline in the drawing. The program includes 'Polyline to pipe' command in order to quick create network from existing drawings.
  • Automatic subcatchment division. The program automatically divide the building polygons (basins) based on bisector in each angle and assign the corresonding influence area to nearest pipe.
  • Quick and accurate modeling even for large networks having thousants of pipes and nodes.
  • Quality hydraulic calculation based on EPANET and EPA SWMM computational libraries. Compatibility with *. inp file format.
  • Survey terrain from 3d faces (TIN). The program reads faces from a user defined layer. If you have terrain surface that is to be changed in later time (e. g additional pavement layer) you can organize each terrain surface in separate layer and design the network for all future cases.
  • Reports for bill of quantities (BOQ) and hydraulic computations.
  • Simply project manipulation. All the design data are stored in a single *. xml file. Free product support from specialist civil engineers with great experience in pipes network projects.

* WaterNET-CAD download link provides trial version of the software.
