> > Point Layout

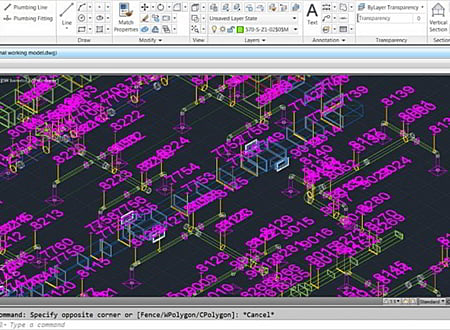

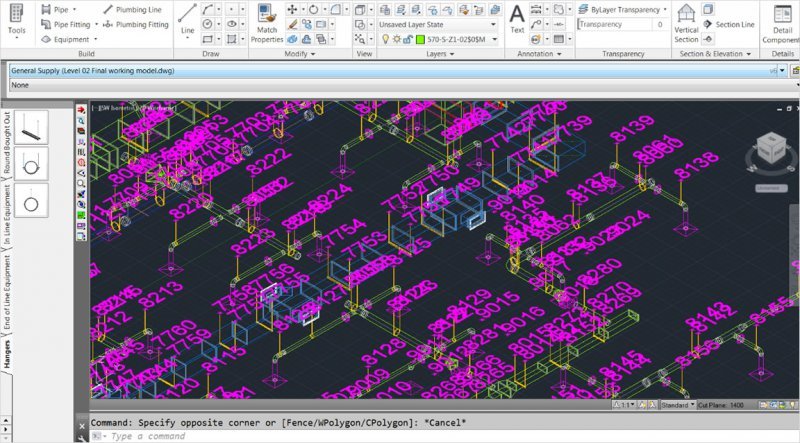

Point Layout screenshot
SOFTWARE :Point Layout
DEVELOPER :Autodesk Inc.
VERSION :2015
PLATFORM :Windows
FILE SIZE :134.41 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:276
Point Layout Description

Point Layout construction layout software helps contractors and subcontractors bring model accuracy to the field. Use model coordinate information at the job site to improve office-to-field efficiency and QA/QC, reduce rework, and increase layout productivity.

Bring greater model accuracy to the field with Point Layout construction layout software. Point Layout software is ideal for anyone who needs to conduct layout on the job site. Create points on almost any object and export point locations to a range of robotic instruments.

Features

Create points: Create points within drawings and models authored in AutoCAD, Revit, or Navisworks software.

Export to robotic instruments: Export points from AutoCAD, Revit, or Navisworks software to a total station or other robotic instrument for more accurate construction layout.

Import field conditions: Import staked point locations back into AutoCAD, Revit, or Navisworks software to help create an as-built model for handoff.

Export to Navisworks: Export your work from AutoCAD or Revit software and import it into Navisworks software to adjust your point locations during the coordination process.

Control points: Add, import, and export control points to your model. Control points can include automatic grid intersection placement, import, and manual placement in AutoCAD and Revit software.

Coordinate systems: Add coordinate systems to your model that match the job site. This helps you align your points with the overall construction project.

3D-model based layout: Integrate with the BIM 360 Layout iPad app and control your layout from the full model.

Compare points:  Use imported field points with field deviation reports for QA/QC, then pass issues to BIM 360 Field software for resolution.

Slab analysis: Import field or as-built points of any surface into Revit software for deviation analysis of field versus the design model.

* Point Layout download link provides trial version of the software.
