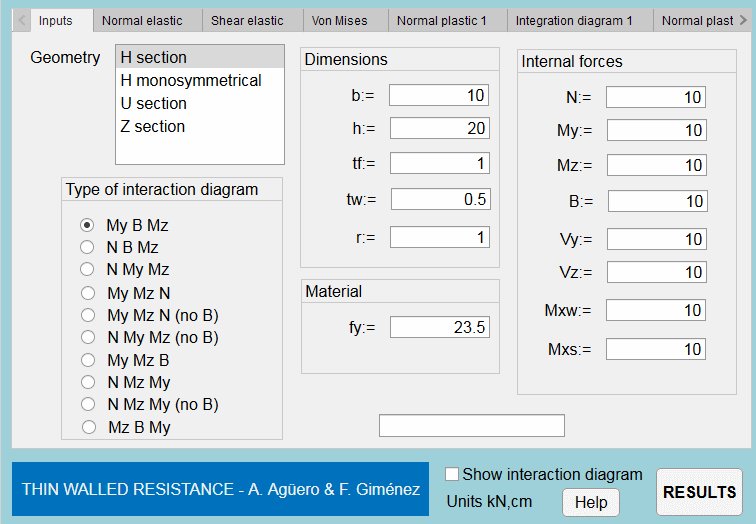

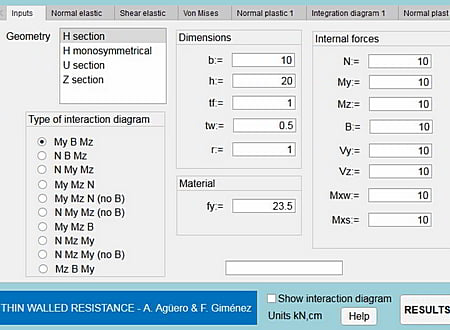

ThinWallRes screenshot
SOFTWARE :ThinWallRes
DEVELOPER :Antonio Agüero
VERSION :2022
PLATFORM :Online
FILE SIZE :Web Application
LICENSE :Freeware
DOWNLOADS :UserDownloads:78
ThinWallRes Description

The following application is part of a set of 10 applications. And it allows to determine the resistance capacity of open thin-walled sections. Antonio Agüero developed the program according to the theory "New interaction formula for the plastic resistance of I- and H-sections under combinations of bending moments My, Ed, Mz, Ed and bimoment B Ed.". Fernando Gimenez developed the user friendly interface.

Determine the elastic and plastic stress state under a combination of stresses and their resistance capacity and for a set of combinations in the form of an interaction diagram. The plastic use of the sections allows optimization by reducing the cost of the structures.

* ThinWallRes download link provides freeware version of the software.

Similar Software
Thinwallres Open&Closed Version:2022 · Antonio Agüero
Thinwallres Open&Closed

Elastic and Plastic Resistance of Open and Thin Walled Sections

Thinwallres Open&Closed application allows to determine the resistance capacity of open and closed thin-walled sections

LTBEAMCOLUM Version:2022 · Antonio Agüero
LTBEAMCOLUM

Critical Loads and Analysis of Imperfect Structures

The following application allows determining the resistance capacity of compressed and deflected pieces with a double tee section, susceptible to lateral buckling.

SHAPE‑THIN Version:9.02 · Dlubal Software
SHAPE‑THIN

Properties and Stresses of Thin-Walled Cross-Sections

SHAPE‑THIN determines section properties of any thin-walled cross‑section and calculates the stresses. In addition, you can perform plastic design.

ThinWalledSections Version:1.0.9 · Structures Office
ThinWalledSections

Thin Walled Sections Analysis

ThinWallSections is a software tool for analysis of multi-cell thin-wall sections. Runs Stand Alone and also Integrates tightly with Excel and Matlab.

CUFSM Version:5.04 · Thin-Walled Structure Group
CUFSM

Cross-Section Elastic Buckling Analysis

CUFSM includes tools for generalized beam-column loading and analysis. CUFSM provides both the semi-analytical finite strip method for creation of the cross-section signature curve as well as the generalized finite strip method for other end boundary conditions.

SHAPE-MASSIVE Version:6.73 · Dlubal Software
SHAPE-MASSIVE

Thick-Walled Cross-Sections

SHAPE‑MASSIVE determines section properties of any thick-walled cross‑section and calculates the stresses.

Comments & Reviews About ThinWallRes
Antonio A
Antonio A · 25 Mar 2022 · ★★★★★

Software for the design of open thin walled sections elastic and plastic behavior. Takes into account axial and shear forces, bending moments, bimoment, torsional moment Saint venant and warping. Draws 3d sketch of elastic normal and shear stresses and von misses stress. Draws also plastic interaction diagrams up to 10 combinations taking into account the 8 internal forces. 3d drawings of normal stresses, shear stresses and von mises stress that can be rotated. Check the help for more information.

Submit a review about ThinWallRes software with your social media profile

avatar
Rate This Software

ThinWallRes has been rated 4.6 out of 5 points. A total of 16 votes cast and 1 users reviewed the software.
