CESDb > Structural Analysis > Thinwallres Open&Closed

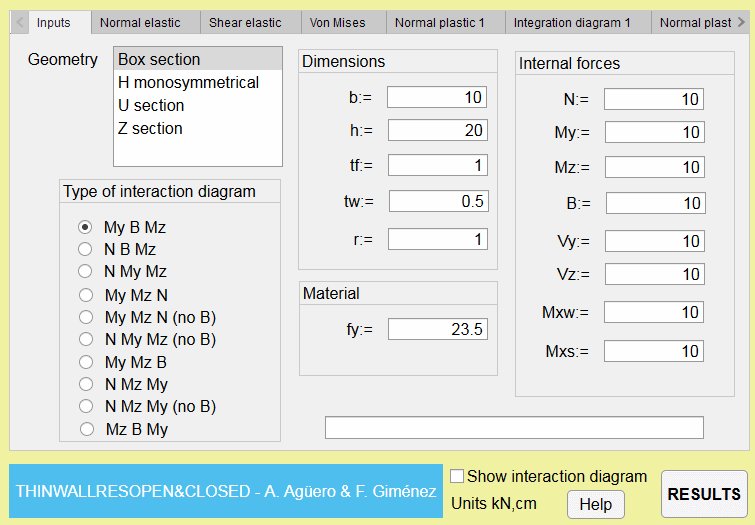

Thinwallres Open&Closed screenshot
SOFTWARE :Thinwallres Open&Closed
DEVELOPER :Antonio Agüero
VERSION :2022
PLATFORM :Online
FILE SIZE :Web Application
LICENSE :Freeware
DOWNLOADS :UserDownloads:67
Thinwallres Open&Closed Description

Thinwallres Open&Closed application allows to determine the resistance capacity of open and closed thin-walled sections. Determine the elastic and plastic stress state under a combination of stresses and their resistance capacity and for a set of combinations in the form of an interaction diagram. The plastic use of the sections allows optimization by reducing the cost of the structures.

Background theory:
New interaction formula for the plastic resistance of I- and H-sections under combinations of bending moments My, Ed, Mz, Ed and bimoment B Ed. https://doi.org/10.1016/j.istruc.2020.11.059
https://www.researchgate.net/project/Interaction-plastic-axial-bending-moments-bimoment-yield-surface

Authors:
Antonio Agüero developed the program according to the theory.(anagra@mes.upv.es)
Fernando Gimenez developed the user friendly interface.

* Thinwallres Open&Closed download link provides freeware version of the software.

Similar Software
ThinWallRes Version:2022 · Antonio Agüero
ThinWallRes

Thin Walled Sections

ThinWallRes allows to determine the resistance capacity of open thin-walled sections.

LTBEAMCOLUM Version:2022 · Antonio Agüero
LTBEAMCOLUM

Critical Loads and Analysis of Imperfect Structures

The following application allows determining the resistance capacity of compressed and deflected pieces with a double tee section, susceptible to lateral buckling.

SHAPE‑THIN Version:9.02 · Dlubal Software
SHAPE‑THIN

Properties and Stresses of Thin-Walled Cross-Sections

SHAPE‑THIN determines section properties of any thin-walled cross‑section and calculates the stresses. In addition, you can perform plastic design.

CUFSM Version:5.04 · Thin-Walled Structure Group
CUFSM

Cross-Section Elastic Buckling Analysis

CUFSM includes tools for generalized beam-column loading and analysis. CUFSM provides both the semi-analytical finite strip method for creation of the cross-section signature curve as well as the generalized finite strip method for other end boundary conditions.

ThinWalledSections Version:1.0.9 · Structures Office
ThinWalledSections

Thin Walled Sections Analysis

ThinWallSections is a software tool for analysis of multi-cell thin-wall sections. Runs Stand Alone and also Integrates tightly with Excel and Matlab.

Critical Depth Calculator in Open Channel Flows Version:0.1 · Hamed Mohammadi
Critical Depth Calculator in Open Channel Flows

Open Channel Hydraulics

This is an application for calculating critical depth in open channels flow.

Comments & Reviews About Thinwallres Open&Closed
Antonio A
Antonio A · 12 Apr 2022 · ★★★★★

Software for the design of open and closed thin walled sections elastic and plastic behavior. Takes into account axial and shear forces, bending moments, bimoment, torsional moment Saint venant and warping. Draws 3d sketch of elastic normal and shear stresses and von misses stress that can be rotated. Draws also plastic interaction diagrams up to 10 combinations taking into account the 8 internal forces (to draw the diagrams it takes about 5 five minutes). the help for more information

Submit a review about Thinwallres Open&Closed software with your social media profile

avatar
Rate This Software

Thinwallres Open&Closed has been rated 4.7 out of 5 points. A total of 16 votes cast and 1 users reviewed the software.
