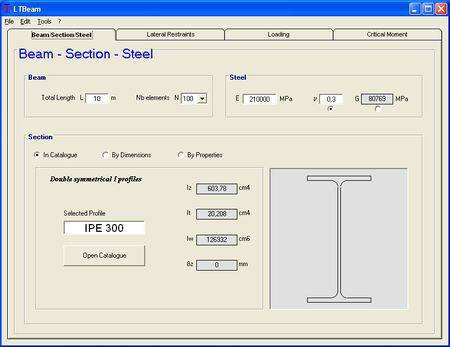

LTBeam screenshot
SOFTWARE :LTBeam
DEVELOPER :CTICM
VERSION :1.0.11
PLATFORM :Windows
FILE SIZE :5.57 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:46028
Legacy Software Notice:
Please be advised that LTBeam is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.
Program Description

LTBeam is a software which deals with the elastic "Lateral Torsional Buckling of Beams" under bending action about their major axis.

LTBeam is a software to be used for the Design of Steel Structures. It has been developed by CTICM (Centre Technique Industriel de la Construction Metallique - France) in the frame of an european research project partially funded by the European Community for Steel and Coal (ECSC Project No 7210-PR183 : "Lateral torsional buckling of steel and composite beams" - 1999-2002).

The lateral torsional buckling phenomenon (LTB) appears when the bending action reaches a critical level. It generates suddenly and simultaneously a lateral bending deformation and a longitudinal torsional deformation along the unrestrained length of beam.

LTBeam applies to straight single- or multi-span beams, under simple bending about their strong axis, with doubly - or mono-symmetrical cross-sections about this plane of bending. Lateral restraints against LTB may be discrete or continuous, full or elastic, and may concern the lateral displacement, the torsional rotation, the lateral flexural rotation and the warping. As the loading, lateral restraints may be applied at a distance above or beneath the shear centre of the cross-sections.

LTBeam is rather designed to deal with steel beams, but others materials can be used, on condition that appropriate properties be input.

* LTBeam download link provides freeware version of the software.
