CESDb > Structural Analysis > ThinWallRes N My Mz B

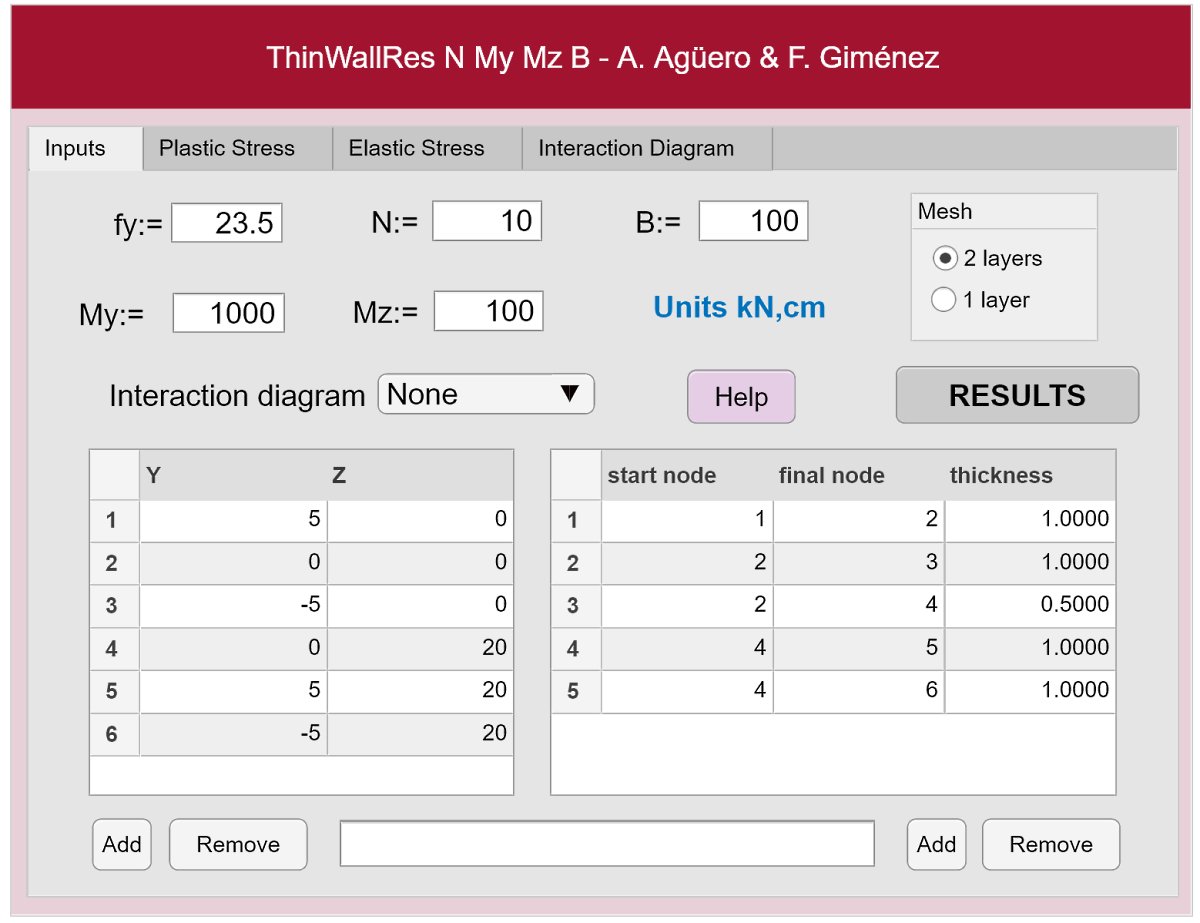

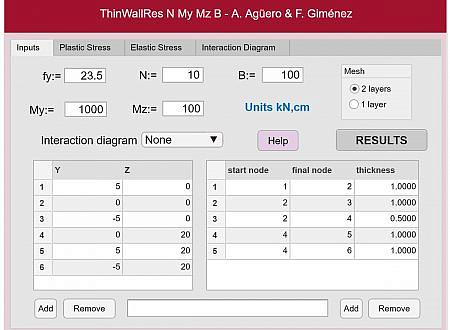

ThinWallRes N My Mz B screenshot
SOFTWARE :ThinWallRes N My Mz B
DEVELOPER :Antonio Agüero
VERSION :2023
PLATFORM :Online
FILE SIZE :Web Application
LICENSE :Freeware
DOWNLOADS :UserDownloads:101
Program Description

ThinWallRes N My Mz B allows determining the resistant capacity of open thin-walled sections subjected to axial, biaxial and bi-moment bending.

Goals

The objective is to determine the stresses and resistant capacity of thin-walled open sections.

Instructions

The geometry of the section is defined, the type of material and the combination of axial, biaxial and bi-moment bending, elastic stresses Class 3 and plasticization factor of sections Class 1 and 2 are determined. The Axial biaxial bi-moment bending interaction diagram is also represented in desired case.

Conclusions

The following tool facilitates elastic and plastic design of sections in class 1, 2 plastic behavior or 3 elastic behavior subjected to axial, biaxial and bimoment bending.

* ThinWallRes N My Mz B download link provides freeware version of the software.
