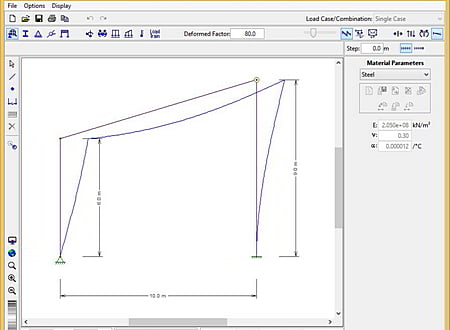

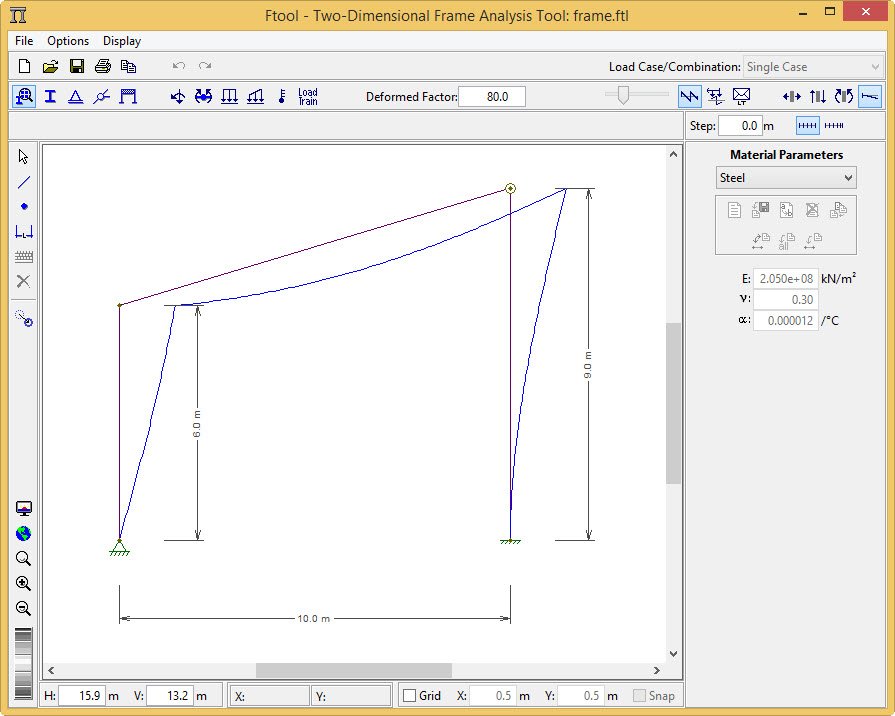

FTOOL screenshot
SOFTWARE :FTOOL
VERSION :4.0
PLATFORM :Windows / Linux
FILE SIZE :2.36 MB
LICENSE :Free for non-commercial use
DOWNLOADS :UserDownloads:12634

FTOOL Description

Ftool is a program designed for instruction on the analysis of plane frame structures. It fulfills a need not often explored by educational programs that usually focus on analytical (numerical) techniques, or by the educational versions of commercial programs. The objective of Ftool is to motivate learning of structural behavior. Educational experiences in this area have shown that knowledge of structural behavior is essential for better understanding of the analytical methods learning process.

Ftool provides a simple analysis program that merges, in the same interface, resources for effective creation and manipulation of the model (pre-processing), linked to a fast and effective code for visualization of the results (post-processing).

* FTOOL download link provides free for non-commercial use version of the software for Windows and Linux.
