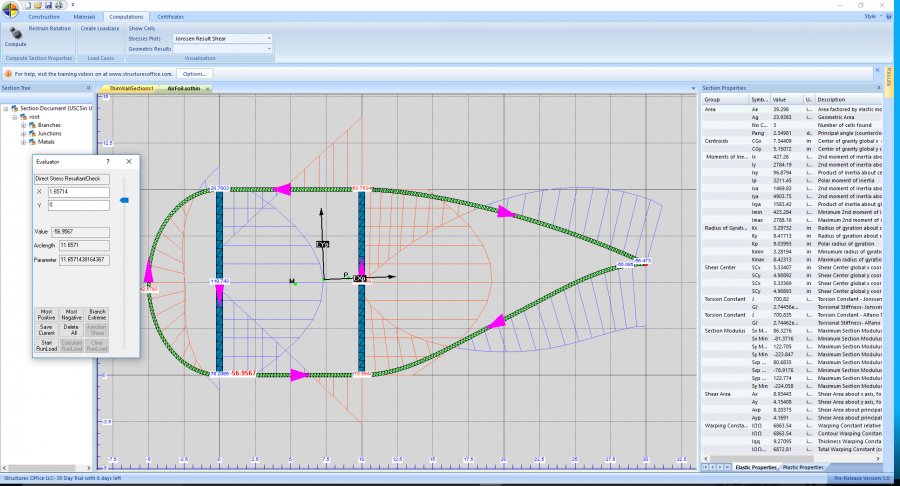

ThinWalledSections screenshot
SOFTWARE :ThinWalledSections
VERSION :1.0.9
PLATFORM :Windows / Spreadsheet
FILE SIZE :9.45 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:540
Legacy Software Notice:
Please be advised that ThinWalledSections is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.
Program Description

ThinWallSections is a software tool for analysis of multi-cell thin-wall sections. Runs Stand Alone and also Integrates tightly with Excel and Matlab.

Features

  • Section properties calculations of open and closed multi-cell cross-sections.
  • Stress analysis including bimoment and warping torsion loads.
  • Geometric Elements: lines, circular arcs, conics and splines.
  • Elastic and plastic computations.
  • Dual methods for complex computations to provide self-checking
  • Fully programmable. May run standalone or embedded with in applications such as Excel.

* ThinWalledSections download link provides trial version of the software.
