The Frame3D application makes it possible to determine the resistant capacity of compressed and flexed frames with a double tee section, susceptible to lateral buckling. For this, the magnitudes of the equivalent imperfections are obtained and the imperfect structure is analyzed.
The objective is to determine the existing efforts in perfect and imperfect frames with linear and non-linear behavior and to determine the resistance of the sections used.

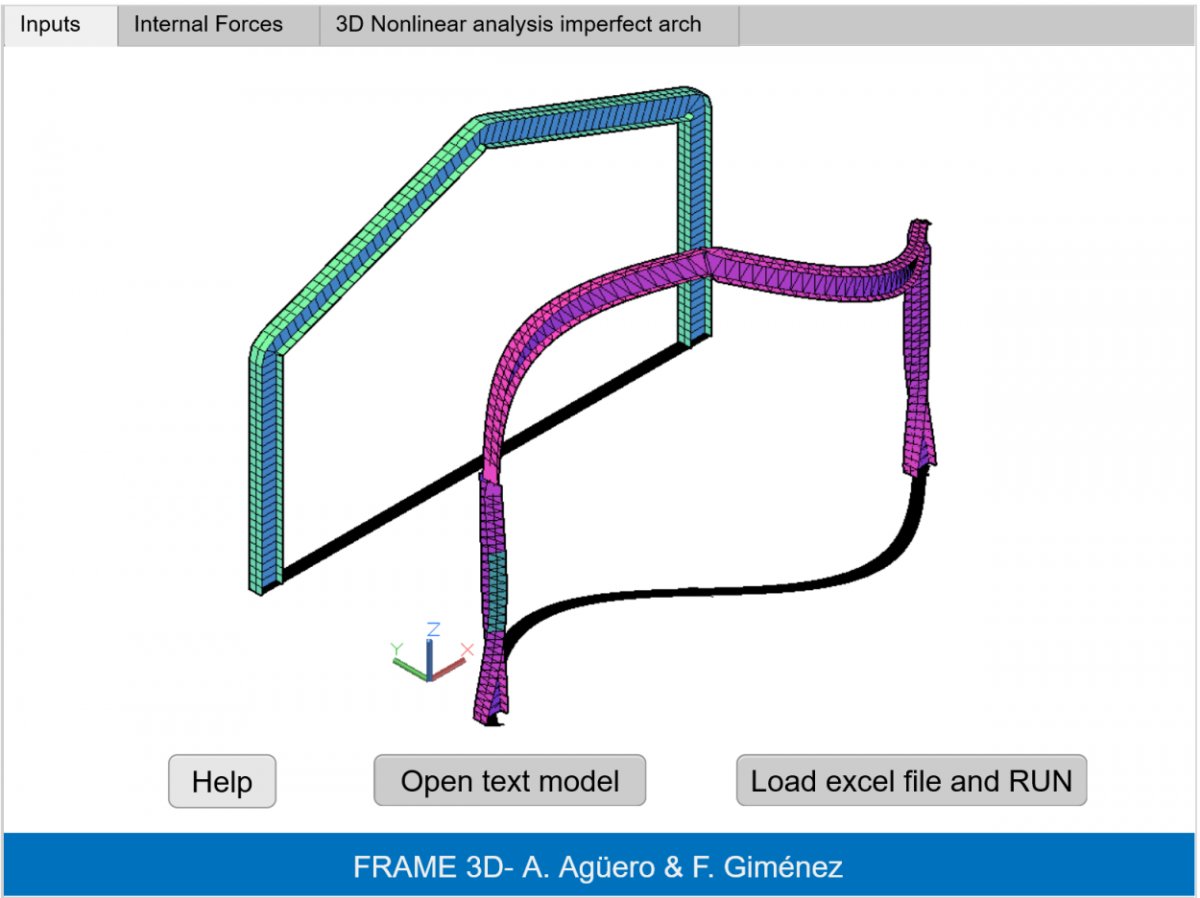

The frame geometry, section shape, dimensions, materials, loads, and boundary conditions inside and outside the plane are selected. Different graphs are obtained as results that show the efforts of the perfect and imperfect structure in linear and non-linear calculation, and the proximity of the sections to their ultimate resistance.
* Frame3D download link provides freeware version of the software.
Critical Loads and Analysis of Imperfect Structures
The following application allows determining the resistance capacity of compressed and deflected pieces with a double tee section, susceptible to lateral buckling.
Portal and Gable Rigid Plane Frame Analysis
FRAME is a spreadsheet program written in MS-Excel for the purpose of plane frame analysis of portal and gable rigid plane frames subjected to various types of loading.
Bending Moments, Axial and Shears Forces in a Plane Frame
A Plane Frame Analysis for bending moments, axial and shears forces in a plane frame structure under point loads, UDL's, linearly varying distributed loads (soil pressures) and moments.
2D Frame Analysis is a powerfull application which uses optimized finite elements (beam elements) in order to perform static analysis of beams, frames and trusses.
2D Frame Analysis is a powerfull application which uses optimized finite elements (beam elements) in order to perform static and dynamic analysis of beams, frames and trusses.
