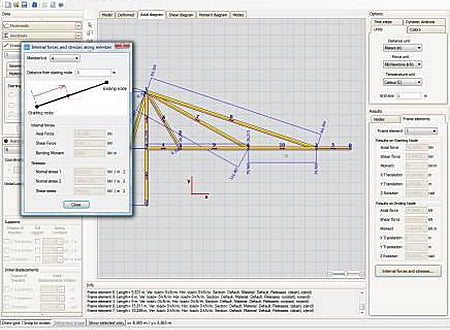

2D Frame Analysis Static Edition screenshot
SOFTWARE :2D Frame Analysis Static Edition
DEVELOPER :EngiSSol
VERSION :2.0
PLATFORM :Windows
FILE SIZE :37.02 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:831
2D Frame Analysis Static Edition Description

2D Frame Analysis is a powerfull application which uses optimized finite elements (beam elements) in order to perform static analysis of beams, frames and trusses. Its versatile interface as well as its easy customization make it a leader-product in frame analysis.

Analysis features

  • Use of highly flexible, general, finite element method
  • Static analysis of multi span beams, 2D trusses and 2D frames
  • Unlimited number of Nodes and Beams
  • 3 Degrees of freedom per Node, 6 per Beam
  • Supports all major measure units
  • All type of boundary conditions (fixed, rollers, etc. )
  • Translational and rotational spring supports
  • Initial displacement conditions
  • Extremely easy model creation, no need to first define nodes and then elements, nodes are produced automatically
  • Consideration of thermal loads

* 2D Frame Analysis Static Edition download link provides demo version of the software.
