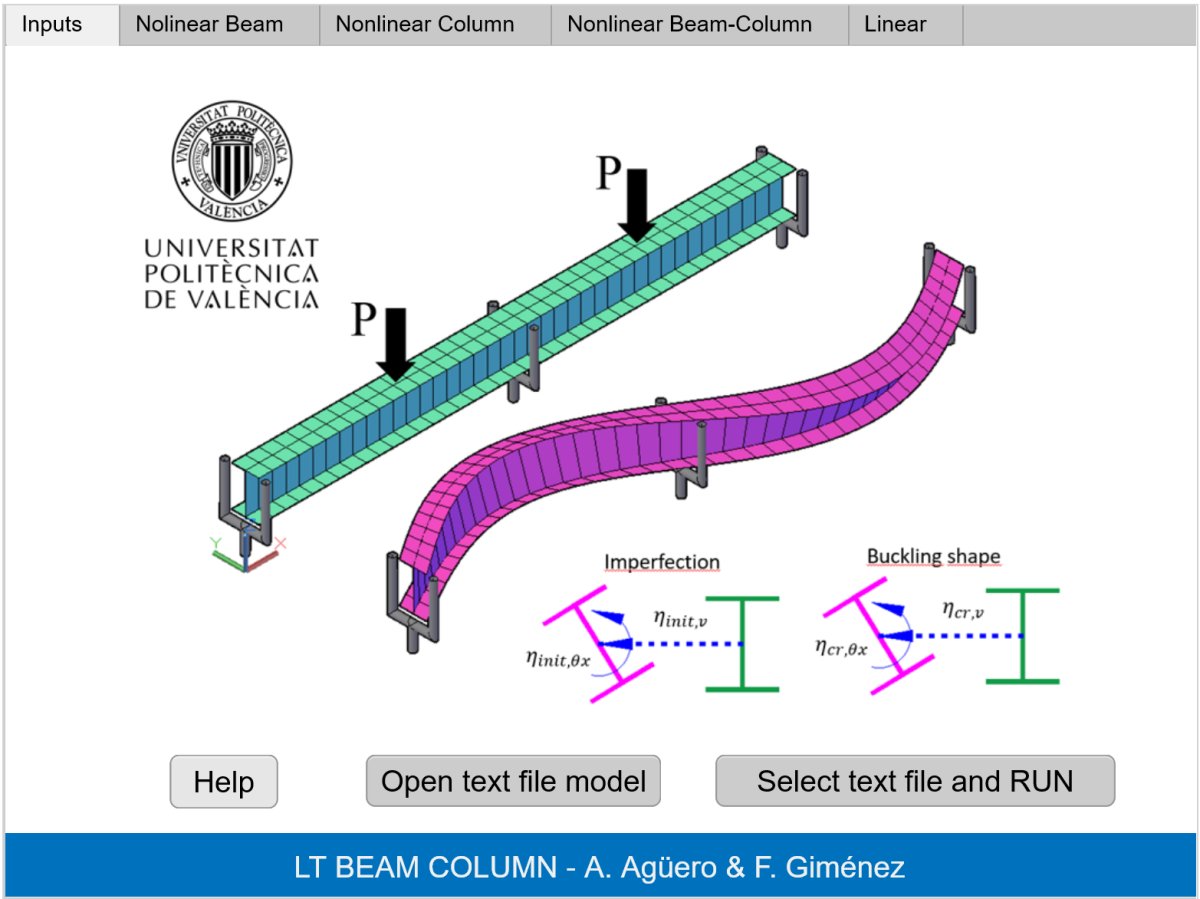

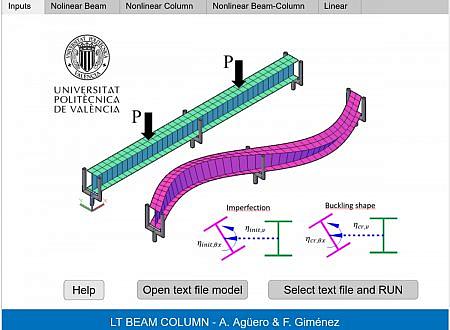

LTBEAMCOLUMNDESIGN screenshot
SOFTWARE :LTBEAMCOLUMNDESIGN
DEVELOPER :Antonio Agüero
VERSION :2022
PLATFORM :Online
FILE SIZE :Web Application
LICENSE :Freeware
DOWNLOADS :UserDownloads:466
Program Description

The following application allows determining the resistance capacity of compressed and deflected pieces with a double tee section, susceptible to lateral buckling. For this, the magnitudes of the equivalent imperfections are obtained and the imperfect structure is analyzed. Type of analysis can be elastic or plastic.

Results the following plots are shown

  1. LTBEAM Analysis of the imperfect structure considering N=0.
  2. LTCOLUMN Analysis of the imperfect structure considering My=0.
  3. LTBEAMCOLUMN Analysis of the imperfect structure considering.
  4. Linear analysis of the perfect structure

* The link opens the official LTBEAMCOLUMNDESIGN website, where the web app can be used on the Freeware plan.
