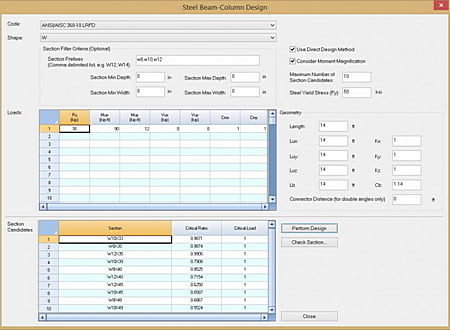

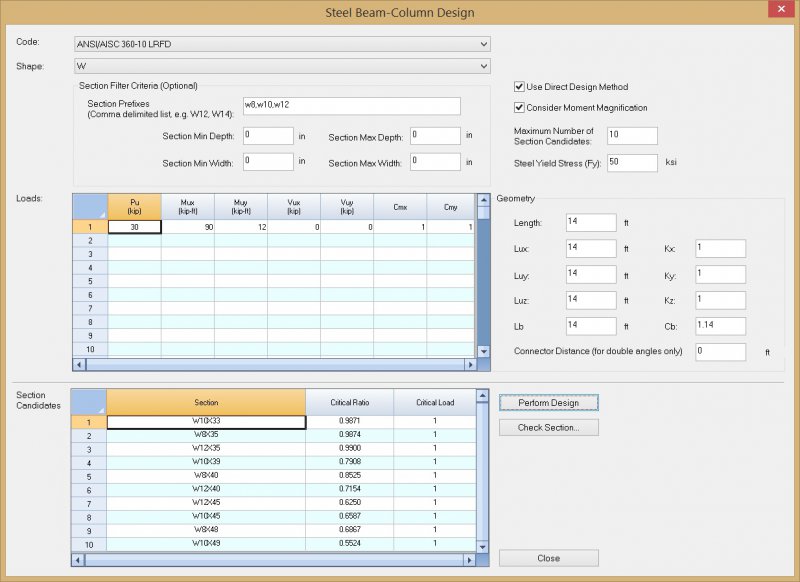

sCheck screenshot
SOFTWARE :sCheck
VERSION :1.2
PLATFORM :Windows
FILE SIZE :20.24 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:887
sCheck Description

sCheck is a Windows program for structural engineers to design and check steel beam/column compliance according to ANSI/AISC 360-10. The program checks, or designs, any of the standard AISC shapes including; W, M, S, HP, C, MC, L, WT, MT, ST, 2L, HSS, and PIPE against a set of load effects. sCheck will automatically generate extremely detailed calculation procedures in html.

Key Features

  • ANSI/AISC 360-10 - LRFD.
  • Check the capacity of any of the standard AISC shapes (W, M, S, HP, C, MC, L, WT, MT, ST, 2L, HSS, PIPE) against a set of load effects.
  • Design and select optimal standard AISC shapes against a set of load effects.
  • Consider moment magnification for non-sway condition.
  • Capability to generate extremely detailed calculation procedures.

* sCheck download link provides demo version of the software.
