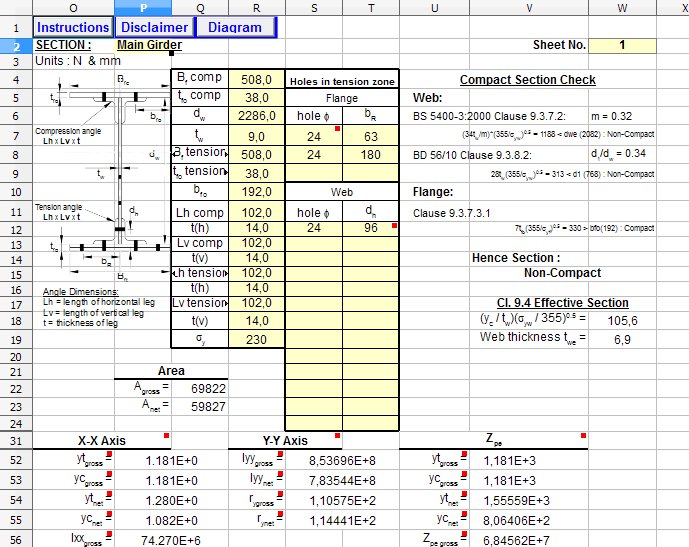

Riveted Plate Girder screenshot
SOFTWARE :Riveted Plate Girder
DEVELOPER :David Childs
VERSION :3.06
PLATFORM :Spreadsheet
FILE SIZE :0.11 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:964
Riveted Plate Girder Description

This spreadsheet has been prepared to calculate the section properties of a riveted plate girder. Section properties of a riveted plate girder to BD 56/10 and BS5400-3:2000 with facility to allow for corroded elements.

Section properties of a riveted plate girder based on BS 5400 Part 3:2000 and BD 56/10: Gross section properties assume no reduction for rivet holes. Effective (net) section properties allow for rivet holes. The number of holes in the tension zone may be adjusted by trial and error by referring to the depth to the neutral axis. Warnings are given if the depth to the hole is in the compression zone of the effective plastic modulus; these values are then removed.

The effective web thickness t is used for determining the net section properties. Shear lag effects are not included as they are only needed for serviceability checks. If shear lag effects are required then the effective flange widths will need to be calculated manually before entering them into the spreadsheet.

* Riveted Plate Girder download link provides freeware version of the software.
