> > Solid Irregular Sections

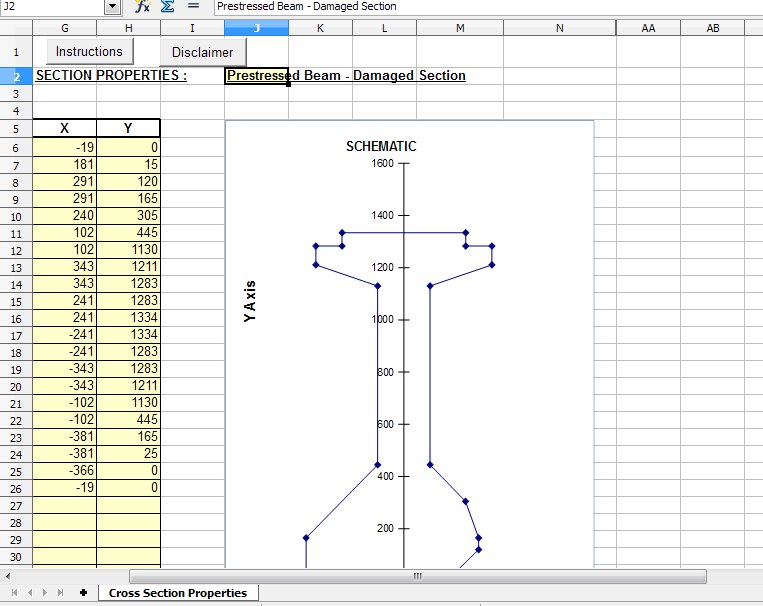

Solid Irregular Sections screenshot
SOFTWARE :Solid Irregular Sections
DEVELOPER :David Childs
VERSION :1.02
PLATFORM :Spreadsheet
FILE SIZE :0.46 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:665
Solid Irregular Sections Description

Section properties, Area, Ixx, Iyy and xy co-ordinates of the centroid are determined for a solid irregular shaped section. Outline of the section is input using x-y co-ordinates.

This Proforma calculates the section properties of an irregular shaped cross section by co-ordinate geometry.

INSTRUCTIONS

  1. Enter data in the yellow cells only.
  2. Enter points on the perimeter of the section as  X Y co-ordinates.
  3. Points must be entered in an anti-clockwise direction.
  4. The start point must have the same X Y co-ordinate as the last point.
  5. Unused cells shall be voided with the DELETE key or contain 0.

* Solid Irregular Sections download link provides freeware version of the software.
