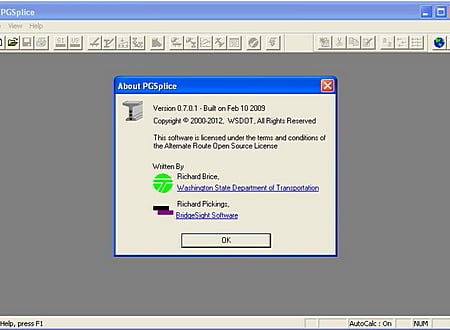

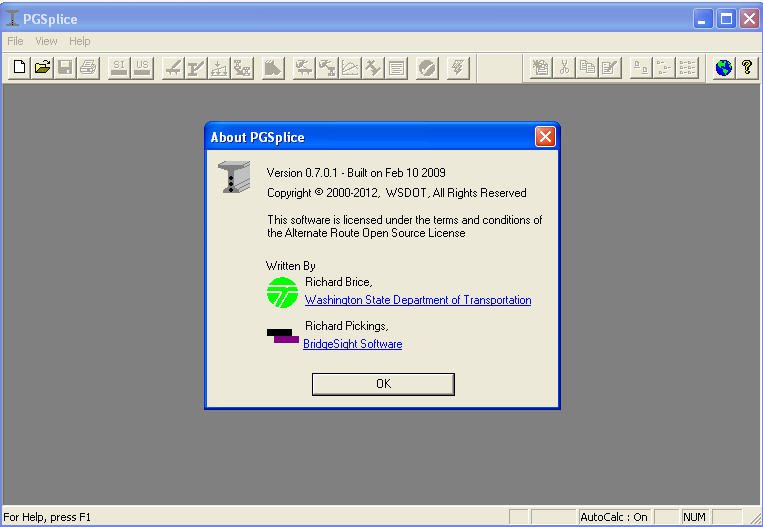

PGSplice screenshot
SOFTWARE :PGSplice
VERSION :0.7
PLATFORM :Windows
FILE SIZE :15.65 MB
LICENSE :Alternate Route Open Source License
DOWNLOADS :UserDownloads:650
Legacy Software Notice:
Please be advised that PGSplice is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.
Program Description

PGSplice is our spliced girder analysis software. This software has been developed for the Alternate Route Project. PGSplice can be used to check spliced precast-prestressed girder design alternatives in accordance with the AASHTO LRFD Bridge Design Specification and/or WSDOT criteria. This software is designed to be an companion tool to PGSuper.

* PGSplice download link provides alternate route open source license version of the software.
