CESDb > Structural Analysis > PSGSimple

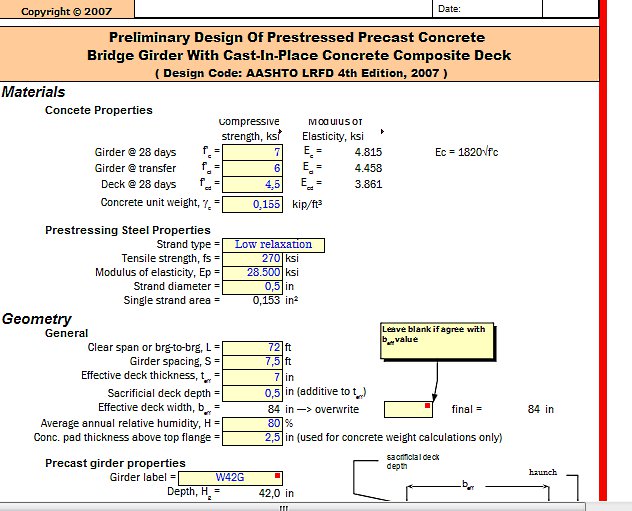

PSGSimple screenshot
SOFTWARE :PSGSimple
DEVELOPER :Yakov Polyakov
VERSION :2007.1
PLATFORM :Spreadsheet
FILE SIZE :0.09 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:1729
PSGSimple Description

This spreadsheet performs stress analysis of a precast prestressed bridge girder at the prestress transfer and service stages. It sizes the girder and determines the amount of prestressing steel. The formulas and procedures used in the spreadsheet are accurate and comply with the 4th Edition of AASHTO LRFD; however, a full code check is required for bridge girder design beyond the scope of PSGSimple.

Capabilities:

  • girder properties calculator.
  • user-defined girder properties database.
  • simple span dead and live load moment calculations (may be overwritten by the user.
  • moving load distribution factor calculations.
  • permanent and temporary prestressing strands layout.
  • immediate and long-term prestressing losses calculations.
  • concrete stress calculations for two sections (midspan for service loads and strands harp point for prestress transfer stage).

* PSGSimple download link provides demo version of the software.

Similar Software
RMCalc Version:2.2.2 · Michael McDonagh
RMCalc

Restraint moments in precast prestressed concrete girder bridges

RMCalc is a Windows-based software program to compute restraint moments in precast prestressed concrete girder bridges constructed with continuous spans.

PGSuper Version:2.9.2 · Washington State Department of Transportation
PGSuper

Prestressed Girder SUPERstructure design and analysis

PGSuper is a powerful open source software for design and analysis of precast-prestressed girder bridges.

ShortCol Version:2018 · Yakov Polyakov
ShortCol

Investigation Of Reinforced Concrete Column Section

ShortCol computes ultimate strength of reinforced concrete column subjected to combined axial force and bending moment.

LRFDShear Version:2006 · Yakov Polyakov
LRFDShear

AASHTO LRFD Shear Capacity Of Concrete Section

LRFDShear Computes ultimate capacity of reinforced/prestressed concrete members subjected to combined action of shear, flexure, torsion and axial forces.

GoBeam Version:2015 · Yakov Polyakov
GoBeam

Continuous Beam Analysis for Excel

The easiest and most straight forward continuous beam analysis program available.

PSLoss Version:2010.1 · Yakov Polyakov
PSLoss

Prestressing Losses in Post-Tensioned Tendon

Calculates elongations and prestress losses due to friction and anchor set of three-dimensional post-tensioned tendon.

Comments & Reviews About PSGSimple

No comments yet. Be the first to comment.

Submit a review using your Facebook ID

Rate This Software

PSGSimple has been rated 3.0 out of 5 points. A total of 2 votes cast and 0 users reviewed the software.
