Stringer models are ideal for modeling reinforced concrete structures mainly exposed to in-plane forces such as diaphragms and shear walls in pre-cast concrete structures.
Reinforced concrete is a plastic material which behaves far from elastic as we know from other materials such as steel etc. Therefore, finite element models aren’t ideal for design of reinforced concrete structures, and design by finite element models often lead to far more reinforcement than necessary.
Due to minor tensile cracks in the concrete the internal forces will automatically redistribute to where extra capacity is available and lead to increased capacity. The optimal plastic solution, which is the solution with the least required reinforcement is therefore an ideal solution for reinforced concrete. Furthermore, it has been shown that this solution is very true to the actual behavior of reinforced concrete and yields very accurate results with respect to SLS.

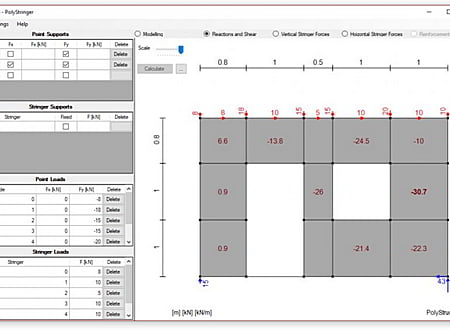

In the case of a diaphragm with a large cantilevered part, or significant holes. The diaphragm cannot be considered ridged. In this case PolyStringer can be used to determine the reactions in the supporting shear walls based on the distribution that is most gentle to the diaphragm. An example of this can be seen in the pictures to the right.
