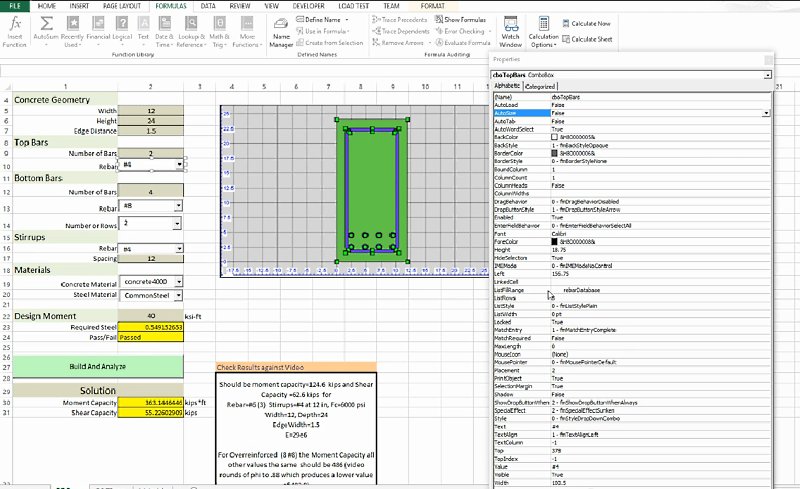

CompactSections screenshot
SOFTWARE :CompactSections
VERSION :2.0.4
PLATFORM :Windows / Spreadsheet
FILE SIZE :10.4 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:1005
Legacy Software Notice:
Please be advised that CompactSections is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.
Program Description

Structures Office supports construction of arbitrary cross-sections, computes area, elastic, and plastic section properties. Performs elastic and plastic bending analysis. Plastic analysis is performed by a numerical method, as well as Cozzone's method.

Key Features

  • High Quality, General Purpose, Section Analysis Tool
  • Authenticated by Symantec
  • Geometric, Elastic (Multiple Modulus) and Plastic Section Properties
  • Restrained and Unrestrained Elastic Bending Analysis
  • Plastic Bending Analysis (ultimate loading)
  • Cozzone Plastic Bending Analysis
  • Fully Programmable
  • Integrates with Excel and Matlab

* CompactSections download link provides trial version of the software.
