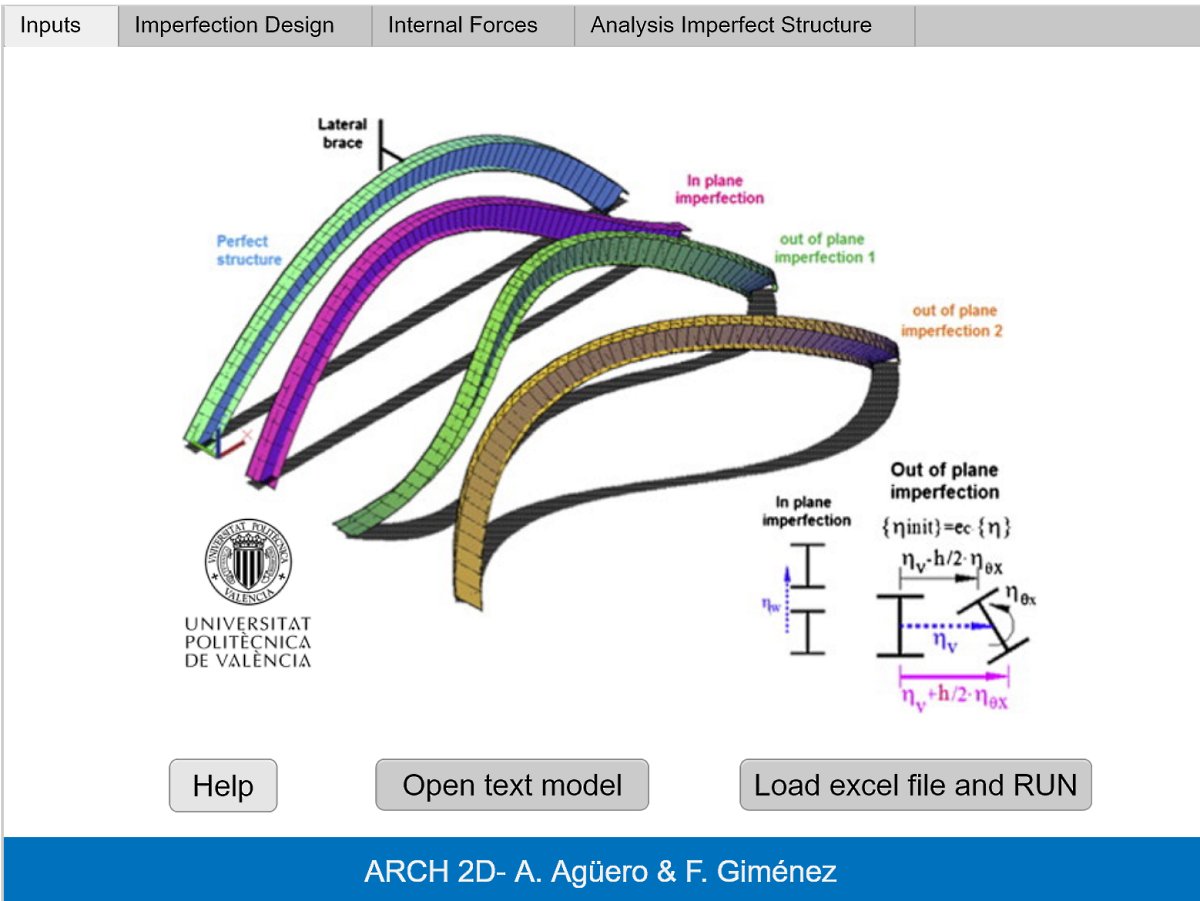

ArchPlane2D screenshot
SOFTWARE :ArchPlane2D
DEVELOPER :Antonio Agüero
VERSION :2023
PLATFORM :Online
FILE SIZE :Web Application
LICENSE :Freeware
DOWNLOADS :UserDownloads:76
Program Description

ArchPlane2D makes it possible to determine the resistant capacity of compressed and flexed arches with a double tee section, susceptible to buckling in their plane. For this, the magnitudes of the equivalent imperfections are obtained and the imperfect structure is analyzed.

Goals

The objective is to determine the existing efforts in perfect and imperfect arcs with linear and non-linear behavior and to determine the resistance of the sections used.

Instructions

The geometry of the arch, section shape, dimensions, materials, loads and boundary conditions are selected. Different graphs are obtained as results that show the efforts of the perfect and imperfect structure in linear and non-linear calculation, and the proximity of the sections to their ultimate resistance.

* ArchPlane2D download link provides freeware version of the software.
