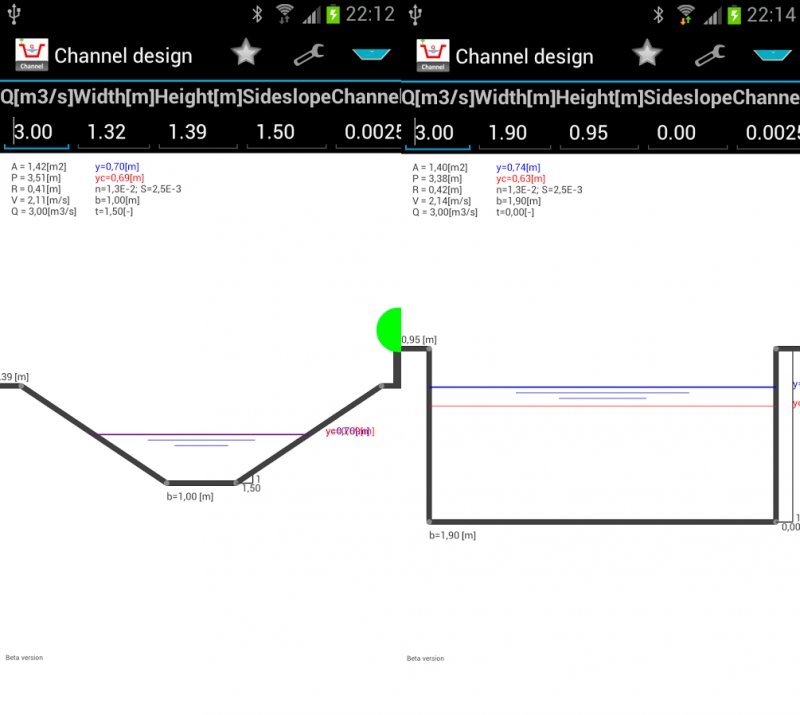

Allows you to interactively design Open Channel Flow for rectangular and trapezoidal shapes.
Graphs your channel to scale and outputs your normal and critical water depths.
Features:
- Allows you to input width and slope both graphically or textually
- Includes predefined shapes (triangle, rectangle, trapozoid)
- Includes US units
* ChannelDesign download link provides freeware version of the software.
This is an application for calculating critical depth in open channels flow.
