CESDb > Structural Analysis > 1•2•Build

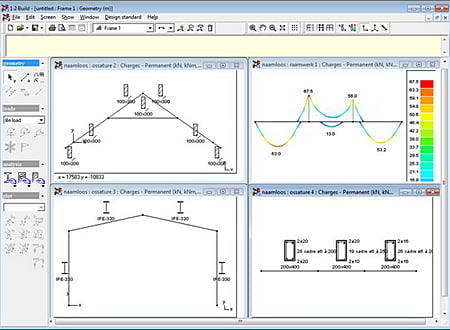

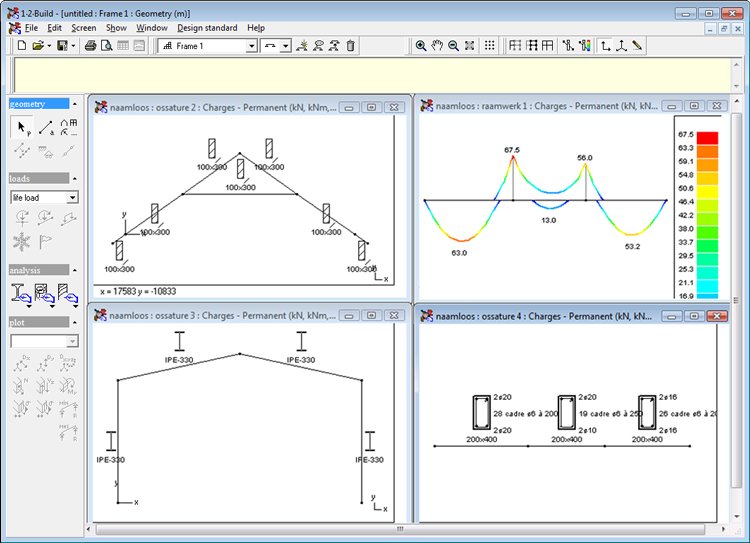

1•2•Build screenshot
SOFTWARE :1•2•Build
DEVELOPER :Buildsoft
VERSION :2.03
PLATFORM :Windows
FILE SIZE :17.89 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:145
1•2•Build Description

1•2•Build is the ideal software to easily design beams, columns and simple 2D structures in steel, concrete of timber.. Within 1•2•Build’s user-friendly environment, you simply draw a beam of frame structure on the screen. Next, the model is completed graphically and interactively with boundary conditions, permanent loads and variable loads.

1•2•Build does all the work for you and always delivers an optimal result: the beam with the smallest height, the steel profile having the lesser weight or the girder with the maximum deflection limits. That way you can design as well economical as fast.

1•2•Build is a complete solution which offers you all necessary functionality for optimal structural design, up to the creation of a concise and highly readable analysis report. On top of that, 1•2•Build presents you a reinforcement sketch and list of material quantities: total volume timber and concrete, total weight and volume of reinforcement, painting surface and weight of steel.

Materials :

Steel

  • Beams, columns and 2D frames
  • Trusses and gantries
  • Built-in cross-section library
  • Total weigth steel and painting surface
  • Resistance and stability check
  • Cross-section optimization

Concrete

  • Beams, columns and 2D frames
  • Plates bearing in 1 direction
  • Rectangular or round cross-secton
  • Elastic deflection
  • Reinforcement proposal and sketch
  • Cross-section optimization

Timber

  • Continuous beams
  • Single or repeating roof truss
  • Rectangular cross-secton
  • Elastic deflection
  • Resistance and stability check
  • Cross-section optimization

* 1•2•Build download link provides trial version of the software.
