CESDb > Structural Analysis > FramePlane2D

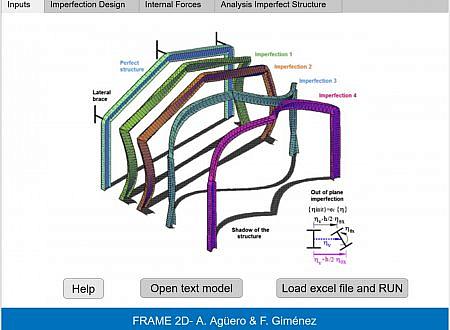

FramePlane2D screenshot
SOFTWARE :FramePlane2D
DEVELOPER :Antonio Agüero
VERSION :2023
PLATFORM :Online
FILE SIZE :Web Application
LICENSE :Freeware
DOWNLOADS :UserDownloads:135
Program Description

FramePlane2D application allows determining the resistant capacity of compressed and flexed frames with a double tee section, susceptible to buckling in its plane. For this, the magnitudes of the equivalent imperfections are obtained and the imperfect structure is analyzed.

Goals

The objective is to determine the existing efforts in perfect and imperfect frames with linear and non-linear behavior and to determine the resistance of the sections used.

Instructions

Frame geometry, section shape, dimensions, materials, loads, and out-of-plane boundary conditions are selected.

Different graphs are obtained as results that show the efforts of the perfect and imperfect structure in linear and non-linear calculation, and the proximity of the sections to their ultimate resistance.

* The link opens the official FramePlane2D website, where the web app can be used on the Freeware plan.
