CESDb > Structural Analysis > Smart Frame 2D

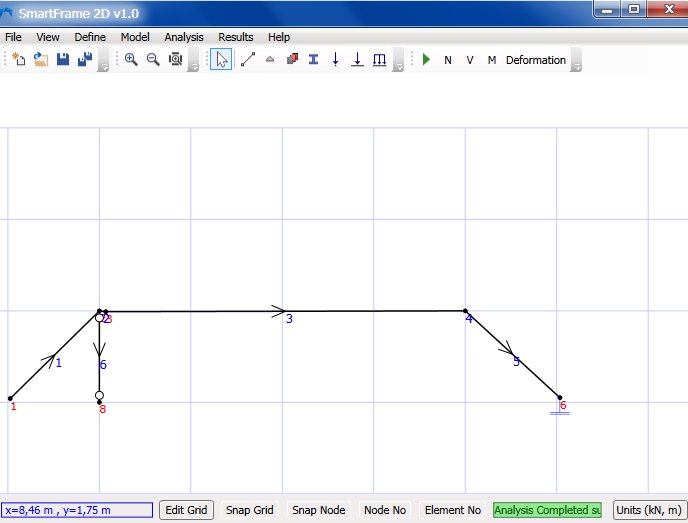

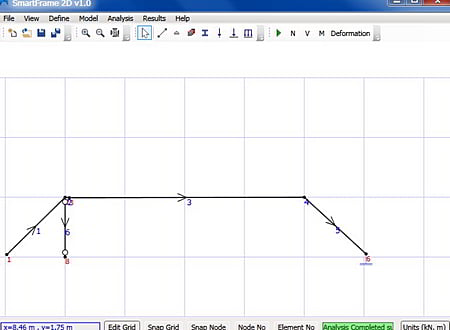

Smart Frame 2D screenshot
SOFTWARE :Smart Frame 2D
DEVELOPER :SmartFrame
VERSION :0.2
PLATFORM :Windows
FILE SIZE :3.41 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:2677
Smart Frame 2D Description

SmartFrame 2D is easy and quick way to model and analyze planar frames, trusses, and multi span beams based on the finite element method.

SmartFrame 2D has powerful graphical modeling capabilities with a flexible graphical user interface. Its graphical user interface lets you draw the structure, design load cases and actions, and calculate results with easy steps.

For the beginner or the professional, SmartFrame 2D is the simplest way to model and analyze beams, trusses, and frames without any previous experience or knowledge of Structural analysis software.

* Smart Frame 2D download link provides trial version of the software.
