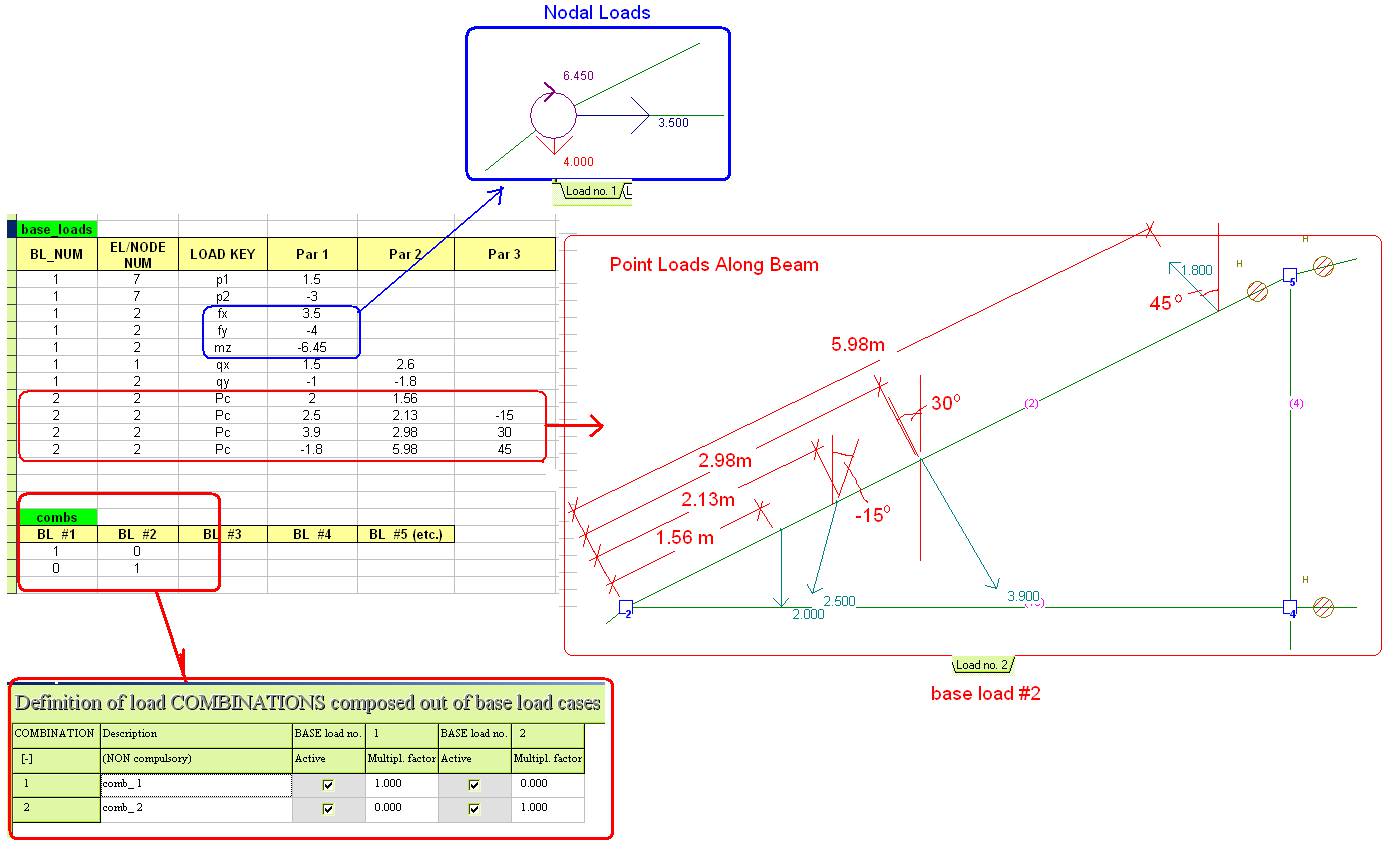

Calc4fem screenshot
SOFTWARE :Calc4fem
DEVELOPER :Calc4fem
VERSION :Alpha 07
PLATFORM :Spreadsheet
FILE SIZE :0.25 MB
LICENSE :GNU General Public License
DOWNLOADS :UserDownloads:7724
Legacy Software Notice:
Please be advised that Calc4fem is considered outdated or legacy, and it has reached the end of its support and update cycle. As a result, compatibility issues may arise, and its functionality cannot be guaranteed on modern computer systems.
Program Description

Calc4fem is the open source spreadsheet for plane frames, beams and trusses calculation. Finite Element Method for beam elements is used.

  •  User Functions for getting results for engineering templates
  •  2D linear static calculation (beams, trusses, frames)
  •  Convert data to other free engineering program
  •  More than 10 load types for building structures
  •  Displacements, reactions, envelopes for load combinations

* Requires Open Office

* Calc4fem download link provides gnu general public license version of the software.
