> > ShapeBuilder

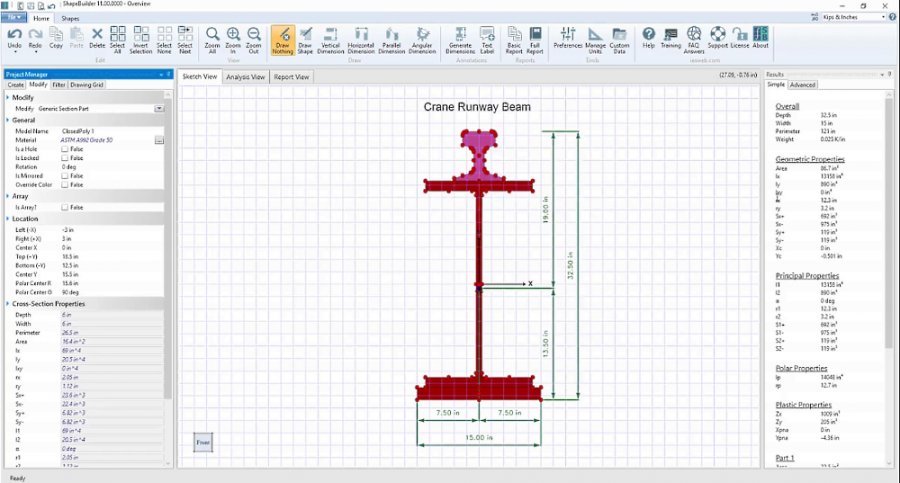

ShapeBuilder screenshot
SOFTWARE :ShapeBuilder
DEVELOPER :IES
VERSION :11.0
PLATFORM :Windows
FILE SIZE :27.02 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:623
ShapeBuilder Description

ShapeBuilder calculates geometric section properties, like area, moment of inertia, etc. It handles multiple materials and composite sections. ShapeBuilder also performs advanced stress analysis, cracked analysis, and calculates the strength of reinforced concrete sections.

ShapeBuilder is a powerful utility for anyone who needs to calculate geometric or structural properties of plane areas. The primary purpose of ShapeBuilder is to help engineers determine properties of custom or combined sections for structural desig.

Custom Shapes
Create built-up or cut-down structural shapes quickly using a variety of techniques.

Easy Editing
Powerful graphical editor allows you to modify or change things.

Composite Shapes
Find transformed section properties for shapes in multiple materials.

Stress Analysis
Investigate bending and shear stress distribution under body-force loading. Accurate finite element results.

Export to VisualAnalysis
Create a library of shapes. Use these shapes as member elements in your VisualAnalysis projects. Even get design checks for certain profiles.

Manufactured Shapes
Includes built-in libraries of shapes from AISC, CISC, AISI, NDS, ADM, EuroSteel, Australian Steel, Rebar. Includes Historic AISC shapes, too.

Shear and Torsion
Calculate torsion and warping constants for open or closed sections. View the warping function graphically.

Graphical Reports
Create a concise one-page report with graphics to show all the calculated properties. Include dimensions or stress results.

* ShapeBuilder download link provides trial version of the software.

Similar Software
SHAPE‑THIN Version:8-18-01 · Dlubal Software
SHAPE‑THIN

Properties and Stresses of Thin-Walled Cross-Sections

SHAPE‑THIN determines section properties of any thin-walled cross‑section and calculates the stresses. In addition, you can perform plastic design.

CBeam Composite Beam Version:2.0 · Juntunen Bridge Systems
CBeam Composite Beam

Section properties for composite beams

CBeam 2. 0 is a windows application that calculates section properties for composite beams.

VisualAnalysis Version:18.0 · IES
VisualAnalysis

General Analysis & Design

IES VisualAnalysis is an easy to learn software for general-purpose frame and finite-element analysis.

Voided Irregular Sections Version:1.01 · David Childs
Voided Irregular Sections

Section Properties of Voided Irregular Sections by Co-ordinate Geometry

This Proforma calculates the section properties, using co-ordinate geometry, of an irregular shaped cross section containing voids.

Solid Irregular Sections Version:1.02 · David Childs
Solid Irregular Sections

Section Properties of Solid Irregular Sections by Co-ordinate Geometry

This Proforma calculates the section properties of an irregular shaped cross section by co-ordinate geometry.

Riveted Plate Girder Version:3.06 · David Childs
Riveted Plate Girder

Section Properties Of A Riveted Plate Girder

Section properties of a riveted plate girder to BD 56/10 and BS5400-3:2000 with facility to allow for corroded elements.
