The program offered here was developed as a hobby more than 25 years ago, seeing that this non-linear calculation method continues to be used to date, I have decided to offer the program for free use by academic and / or professional users, without assuming any responsibility for the use made of it. Likewise, I hope to receive contributions from users, to be able to implement improvements and / or corrections.
The program "PREPNTX" consists of a preprocessor oriented to the problem of calculating retwalls by elasto-plastic methods.
The effective calculation is carried out by the program "PANTNT" which is a program of finite elements of general purpose that incorporates in its library of elements "springs" of bilinear elastoplastic behavior with different rigidity according to the sign of the relative displacement.
The introduction of the problem data is done through a plain text file in which by defining a small amount of numerical data it is possible to describe complex structural configurations and processes or construction phases.
In the definition of the meta language chosen for the introduction of numerical data it has been decided to follow the guidelines established by Professor E. L. Wilson in the development of the popular calculation program "SAP". Therefore, the language consists of a series of *labels indicating the beginning of a data entry block, and then a series of tags that identify the particular data(s) that is entered.

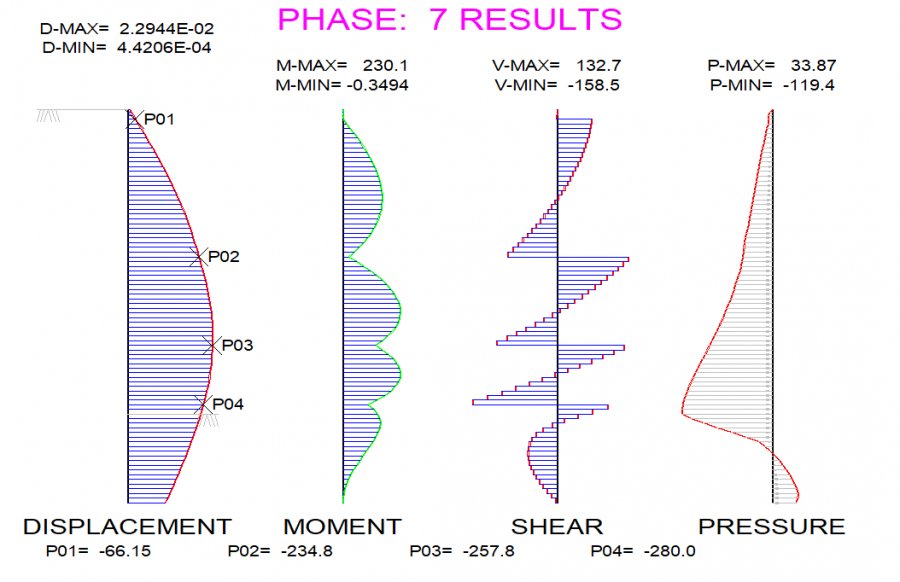

In order to be able to visualize the results graphically, the program "POSPNT" has been developed, which in addition to providing a very simple and intuitive graphical interface, generates two result files: *.fef extension (Frame Extreme Forces) and the *.dpa file (Displacements, Pressures and Anchors Forces).
Now the background color is white, in order to make it easy to obtain hardcopies to include in a word or whatever document might be needed. If you select such output, the program generates light whateveryoucall.png files (if POSPNT finds the free software “BMP2PNG.EXE”) otherwise the program generates heavy whateveryoucall.bmp files.
* RetWall download link provides freeware version of the software.
The program Redi Rock wall is used to design and check a retaining walls made from blocks produced by Redi-Rock, Inc (USA).
Frew enables engineers to define and solve even the most complex embedded retaining wall design problems quickly.
Designed by engineers for engineers, ReWaRD draws upon the technical expertise of Geocentrix to produce the most powerful and user friendly set of tools for retaining wall design.
RetainWall is a software mainly developed for the purpose of designing a concrete or masonry retaining wall.
SRWall is design software for Segmental Retaining Walls.
ASDIP Retain is a suite of modules specifically dedicated to the design of retaining walls, based on the latest IBC / ACI 318 specifications, that greatly simplifies the time-consuming calculations in any structural engineering office.
