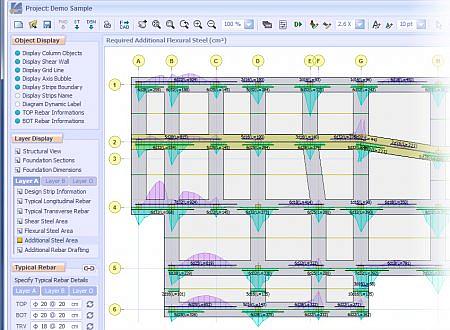

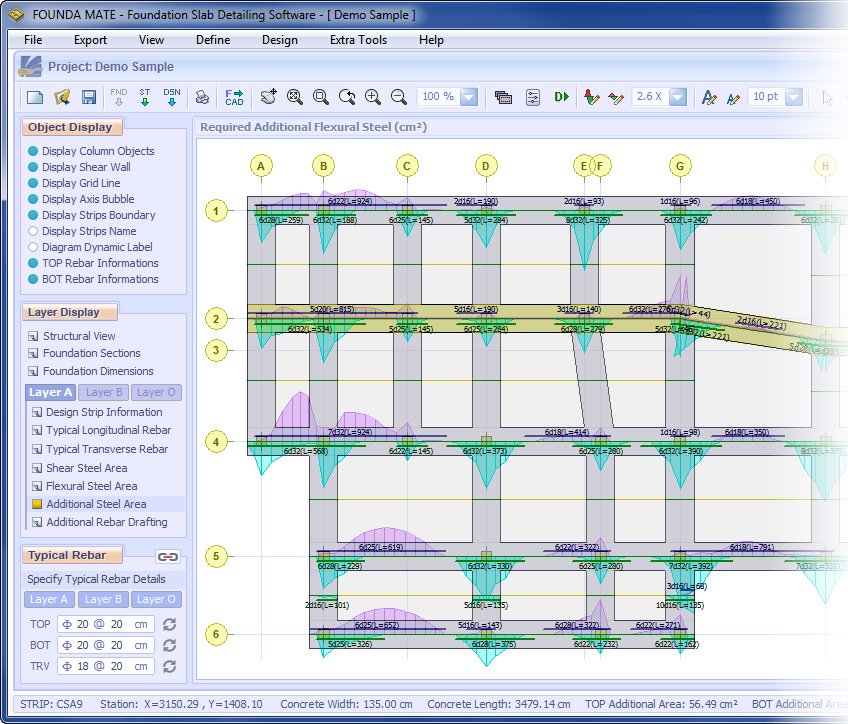

FOUNDA MATE is a professional foundation slab detailer software. This software is a powerful and very quick tool for automatically design and draw reinforcement details of foundation slabs in a developed, simple and easy graphical interface in according to building model design results of SAFE software.

In this software you can preview your model in the graphical user interfaces, design reinforcement details and then generate structural drawings of your projects in few seconds. Also you can generate structural drawings of your model. software can save prepared structural drawings in the AutoCAD drawings file format.

In addition FOUNDA MATE can prepare several kinds of reports such as structural material list according to element type and other useful reports.

Software Features and Capabilities

• Incredibly speed in reinforcing design and preparing structural drawings.
• Compatibility with SAFE 8, 12, 14, 16, 20, 21, 22, 23.
• Compatibility of generated drawings with all versions of AutoCAD Software.
• Simple Procedure for importing structure from SAFE to FOUNDA MATE.
• User friendly and very simple graphical interfaces.
• Independent software without any dependency to other programs.
• Ability to support and provide details for the angular design strips.
• Ability to support and provide details for the poly-line broken design strips.
• Featuring intelligent algorithm of economic optimization of reinforcement bars based on shape of steel area diagram.
• Ability to reduce steel consumption by 20% using software economic optimization algorithms.
• Ability to define typical longitudinal rebar details for Top and Bottom location of Design Strips separately.
• Ability to define typical rebar details for Layers A, B and Other separately.
• Ability to define typical rebar details for each Design Strips separately by mouse click.
• Equipped with powerful and very quick internal drawing engine.
• Easy to edit drawings that generated by software.
• Ability of previewing all computed details with a very convenient way in the plans of structure.
• You can define transverse section and dimension lines by mouse click on the desired locations.
• Automatically calculate splice length of rebar or use user defined multiplayer for calculate them.
• Auto labeling all rebars in structural drawings.
• Auto generate rebar list table include size, shape, length and weight of rebars in the structural drawings.
• Automatically read all defined geometry and section from SAFE model file and regenerate them.
• Ability to define new section or edit properties of section that automatically generated by software.
• All reinforcing design parameters can be configured in the software.
• Ability to change reinforcing design details in software before generating structural drawings.

* FOUNDA MATE download link provides trial version of the software.
