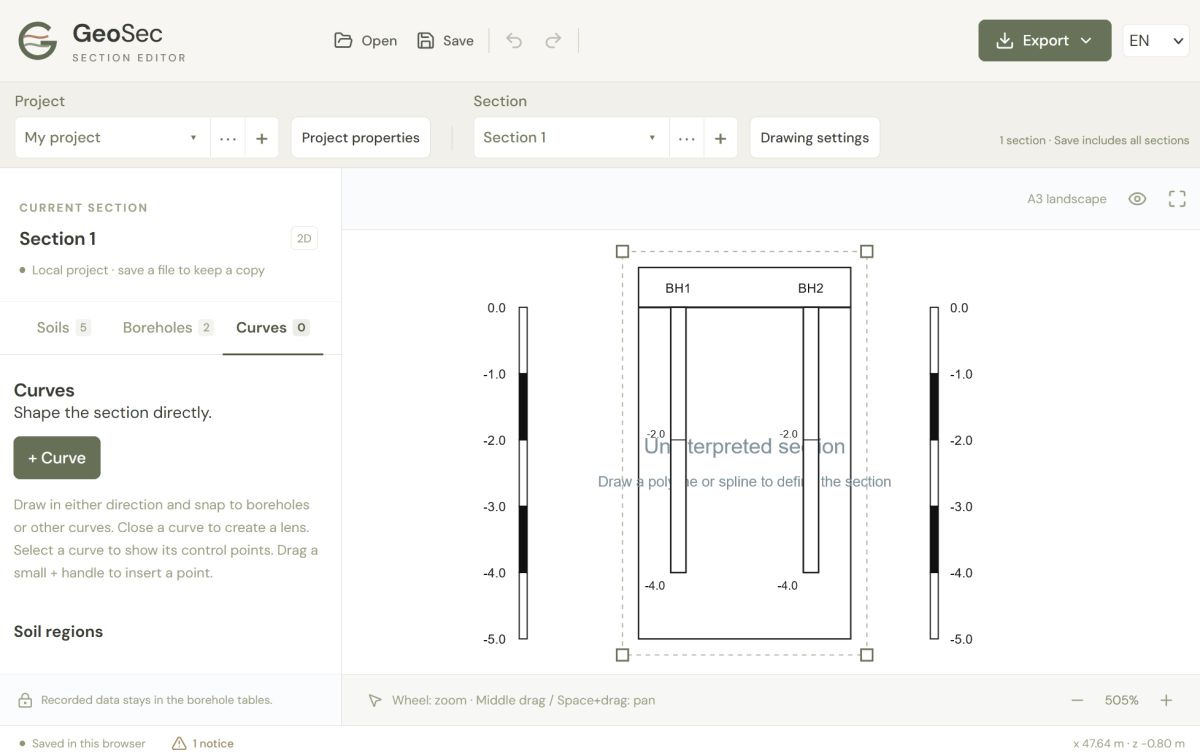

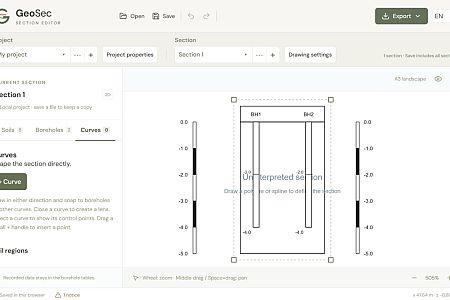

GeoSec is a browser-based tool for creating 2D geological cross-sections from borehole data.
Define your soils, enter borehole positions, ground elevations and layer depths, then draw and adjust the geological interfaces directly on the section. Moving an interface updates the adjacent soil regions without changing the recorded borehole layers.
The drawing includes soil colours and hatches, a legend and an automatically aligned borehole information table showing ground elevations, bottom elevations, distances and dates.
GeoSec is intended for engineering geologists and geotechnical consultants who need a straightforward section-drawing tool rather than a full 3D geological-modelling package. Geological interpretation remains under the user's control.
The editor and an example project are available to try free. Unbranded drawing exports are available for €5 per month.
* GeoSec download link provides demo version of the software.
