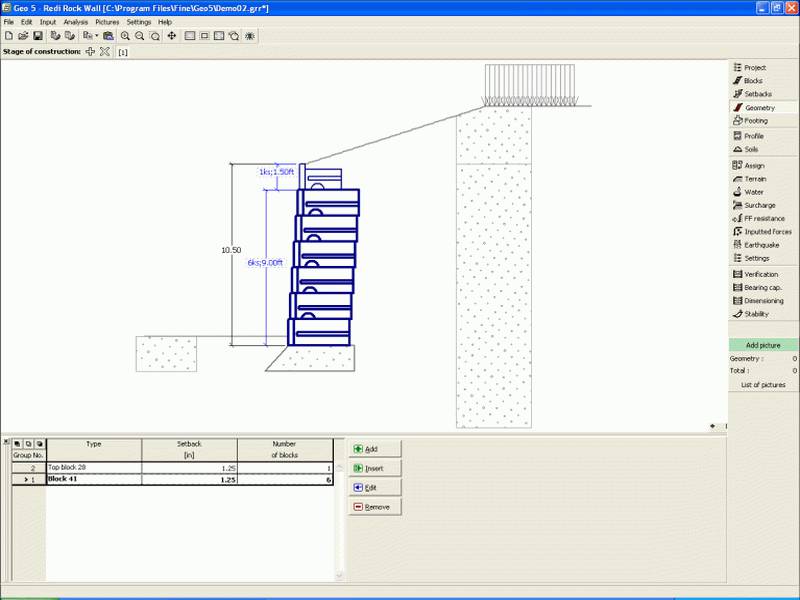

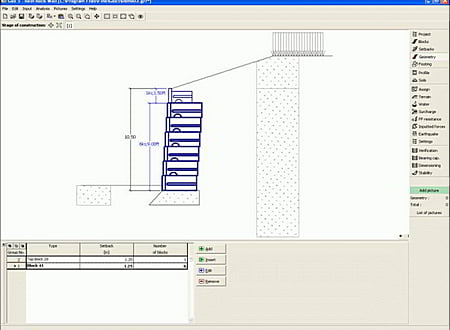

Redi Rock Wall screenshot
SOFTWARE :Redi Rock Wall
DEVELOPER :Fine Ltd
VERSION :2018
PLATFORM :Windows
FILE SIZE :0.96 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:1214
Redi Rock Wall Description

The program Redi Rock wall is used to design and check a retaining walls made from blocks produced by Redi-Rock, Inc (USA). The program is developed as a part of GEO5 software and includes freeware versions of programs Slope Stability and Spread Footing.

Main features

  • Internal stability analysis (overturning, translation, load-bearing capacity of foundation soil)
  • Database of blocks and setbacks produced by Redi-Rock Inc.
  • Analysis according to NCMA guide including hinge-height concept
  • Analysis according to Load Resistance Factor Design (LRFD)
  • Analysis according to the theory of limit states and safety factor
  • Generally layered soil environment
  • Arbitrary number of surcharges applied to structures (strip, trapezoidal, concentrated load)
  • Arbitrary number of inserted forces (anchors, safety fences, etc. )
  • Modelling of water in front of and behind structures, modeling of artesian water
  • General shape of terrain behind the structure
  • Berms in front of the structure
  • Various types of pressures in front of the structure (at rest, passive, reduced passive)
  • Analysis of earth pressures in effective and total parameters
  • Earthquake effects (Mononobe-Okabe, Arrango)
  • Supports mesh overhangs with anchorage
  • Multiple construction stages
  • Verification of global stability of a wall using program Slope Stability
  • Analysis of bearing capacity of foundation soil in program Spread Footing

* Redi Rock Wall download link provides freeware version of the software.
