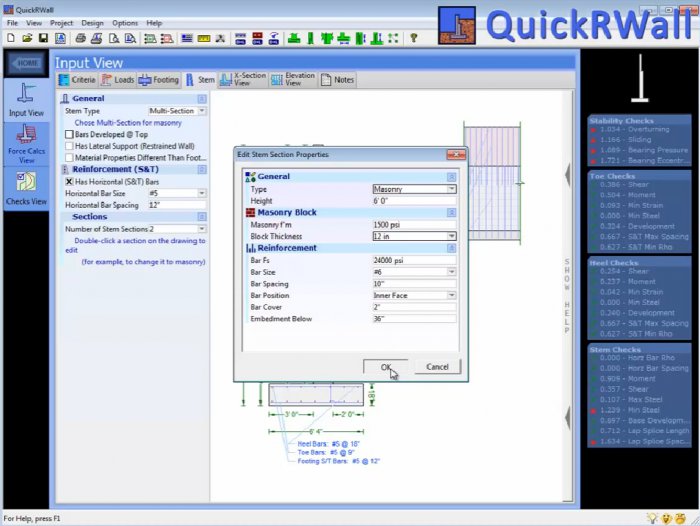

QuickSuite screenshot
SOFTWARE :QuickSuite
DEVELOPER :IES
VERSION :5.0
PLATFORM :Windows
FILE SIZE :7.39 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:1335
QuickSuite Description

This product contains four independent tools: QuickRWall, QuickFooting, QuickMasonry, and QuickConcreteWall, you may install them all or pick and choose which products you wish to download. They are licensed independently.

QuickMasonry

A stand alone tool of masonry components to manage multiple structural components within a single project file.   The QuickMasonry "Project Management" tool offers the ability to design a whole series of lintels and walls, for a single building in one project file, following the latest masonry design specifications and offering a host of impressive features.

Masonry components handled

  • Lintels
  • Bearing Walls
  • Panel Walls (loads out of plane)
  • Shear Walls
  • Pilasters
  • Columns
  • Beams

QuickFooting

Concrete spread footing (single column pad), imports from VisualAnalysis. Design and check reinforced concrete footings under a single column without building a complex analysis model of the building.

Key benefits

  • Will check several footings all at once (for worst case).
  • Automatic sizing and detailing (optional).
  • Advanced handling of biaxial loading
  • Offset pedestal from footing center
  • Checks footing, pedestal, and interface.
  • Stability checks: Bearing pressure (net & gross), overturning, sliding, and uplift.
  • Complete units flexibility.
  • Accurate calculation of bearing pressure under biaxial loading.

QuickRWall

QuickRWall is perhaps the best tool on the market for retaining wall design! It will get you out of the 'black box' and into high-quality wall design in short order. The reports are excellent with full equations and intermediate data readily available for complete checking. QuickRWall is very graphical, extremely easy to use, fast, and robust.

Wall Configurations

  • Cantilever Retaining Walls
  • Gravity Retaining Walls (ACI Chapter 22)
  • Restrained Walls, Basement Walls, Propped Cantilevers
  • Tapered (Battered) or Stepped

Wall Materials

  • Concrete,
  • Masonry
  • Mixed Concrete & Masonry

QuickConcreteWall

QuickConcreteWall specializes in reinforced concrete shear walls and is an excellent tool for detailing a concrete wall subject to in-plane forces.   Complex ACI interaction checks are done instantaneously as you tweak design parameters and view the results. Complete rebar detailing is provided in a productivity-quick format.

* QuickSuite download link provides trial version of the software.
