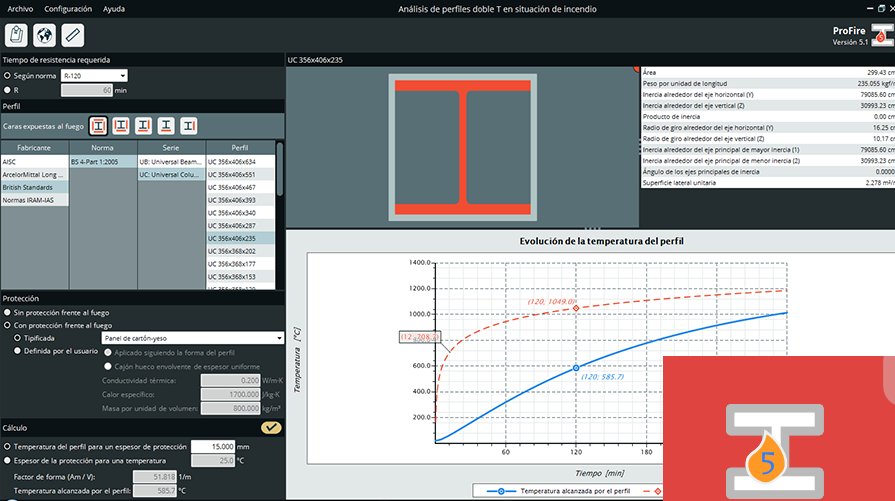

ProFire screenshot
SOFTWARE :ProFire
DEVELOPER :Blue5Soft
VERSION :5.4
PLATFORM :Windows
FILE SIZE :95.09 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:460
ProFire Description

Heating evolution analysis of I-H shaped steel profiles under fire situation (protected and unprotected profiles). Allows to use typical and user defined fire protections. The user sets the sides which are exposed to fire. Includes a large number of I-H shaped sections from various countries.

Codes

  • EN 1993-1-2:2005
  • CTE DB-SI

Profiles and their properties

It is possible to select profiles from a large database of I-H shaped rolled profiles. For each profile, it is shown its area, weight per unit length, inertia, radius of gyration, unitary lateral surface and section factor.

Fire protections

It is allowed profiles with or without fire protection. The protections can be typified or user defined.

  • Mineral fibre spray
  • Vermiculite or perlite plaster spray
  • Low density vermiculite or perlite cement spray
  • High density vermiculite or perlite cement spray
  • Mineral or rockwool
  • Intumescent coating
  • Plasterboard
  • Calcium silicate fibre board
  • Fibre cement board
  • Vermiculite or perlite cement board
  • Rockwool board

* ProFire download link provides trial version of the software.
