> > MITCalc Profiles

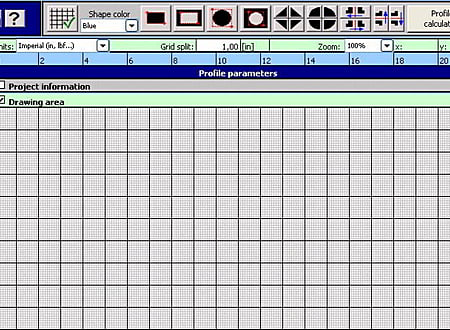

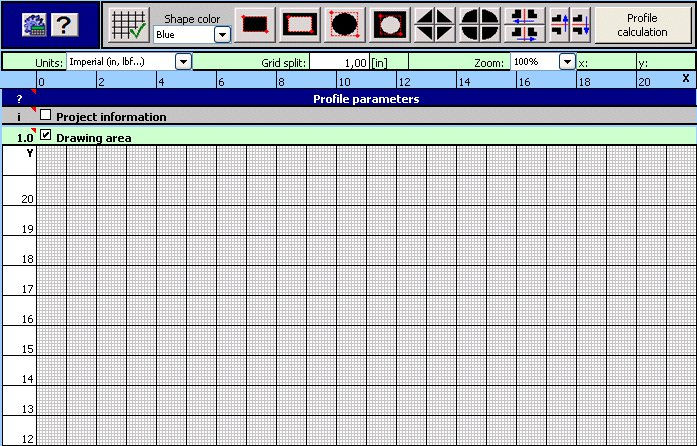

MITCalc Profiles screenshot
SOFTWARE :MITCalc Profiles
DEVELOPER :MITCalc
VERSION :1.21
PLATFORM :Spreadsheet
FILE SIZE :1.68 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:381
MITCalc Profiles Description

The calculation solves area characteristics of common profiles and mass characteristics of solids created by drawing or rotation of the profile.

The application enables:

  • Creation of a profile in a simple graphic editor.
  • Calculation of area characteristics for main axes passing through the centre of gravity (moment of inertia, radius of gyration, bending modulus. . . ).
  • Calculation of area characteristics (Ix, Sx) for randomly turned axes passing through the centre of gravity, including a graph.
  • Calculation of characteristics for the turned axes which pass through a random point.
  • Calculation of volume and mass characteristics (V, m, Im) of solids created by drawing or rotation of the profile.

* MITCalc Profiles download link provides trial version of the software.
