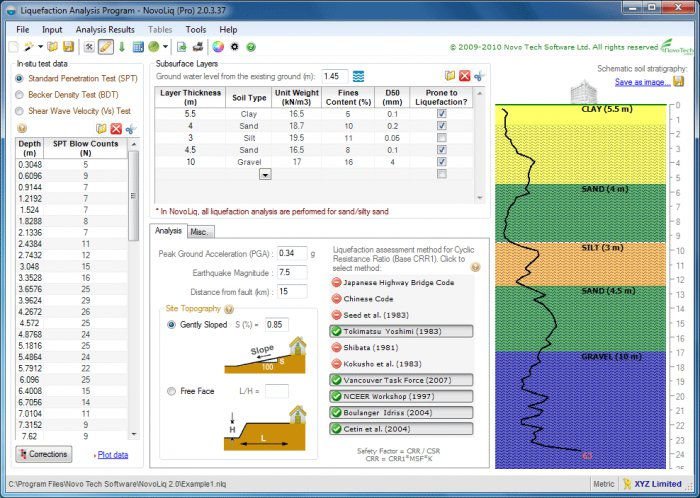

NovoLiq is designed as a very flexible and comprehensive soil liquefaction analysis software which can compare more than 10 different methods. This robust software is designed for soil liquefaction analysis during earthquake and supports multi-layer as well as single layer stratigraphy. The results of the analysis are presented as:
- Safety Factor Against Soil Liquefaction
- Probability of Soil Liquefaction
- Post-liquefaction Site Condition
NovoLiq supports the following field tests for liquefaction triggering (full description of theory is included in our users manual):
- Standard Penetration Test (SPT)
- Becker Denseness Test (BDT)
- Shear Wave Velocity (Vs)
Soil resistance (CRR) is calculated based on:
- Japanese Bridge Code
- Chinese Code
- Seed et al. (1983)
- Tokimatsu-Yoshimi (1983)
- Shibata (1981)
- Kokusho et al. (1983)
- Vancouver Task Force (2007)
- NCEER Workshop (1996)
- University of California at Davis (2004)
- Cetin & Seed (2004)
* NovoLiq download link provides trial version of the software.
Using VisLog, the user will be able to enter borehole information including the stratigraphy, coordinates, ground water level, etc.
NovoLAB is the most comprehensive geotechnical software for lab data management and borehole log drafting.
LateralK is a simple software for calculating lateral earth pressure coefficients and forces behind retaining walls in static and earthquake condition based on Rankine/ Coulumb formulas and also Mononobe/ Okabe methods.
Geotechnical engineers can use this software for day-to-day analysis and calculations.
Peysanj is a series of geotechnical engineering modules such as bearing capacity and settlement, pressure-meter test, plate loading test, soil liquefaction analysis, etc bundled as single software.
NovoBPT is designed for correcting raw BPT blow counts (Nb) and converting them to SPT blow counts (N60).
