> > MEXE Analysis

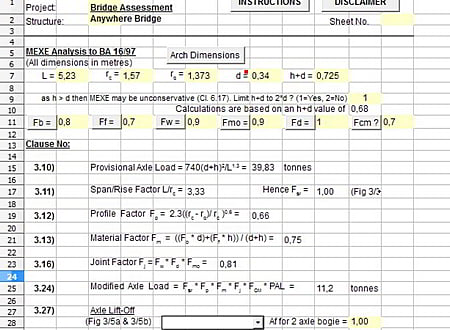

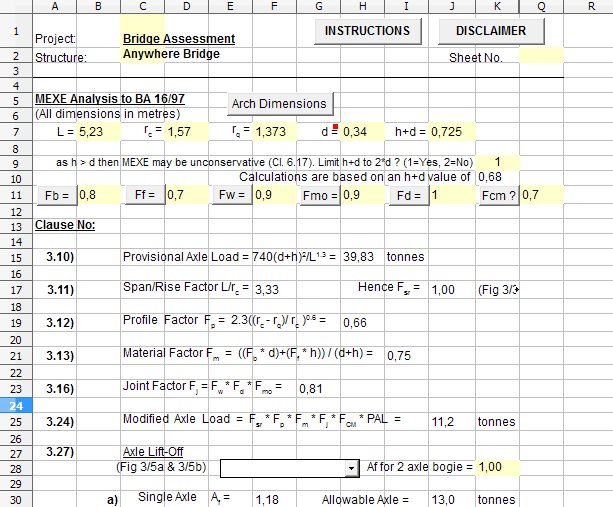

MEXE Analysis screenshot
SOFTWARE :MEXE Analysis
DEVELOPER :David Childs
VERSION :1.08
PLATFORM :Spreadsheet
FILE SIZE :0.57 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:481
MEXE Analysis Description

This Proforma calculates the load carrying capacity of an arch (up to 40 tonnes gross vehicle weight) based on the modified MEXE (Military  Engineering and Experimental Establishmen ) method as described in the Design Manual for Roads and Bridges Standards BD 21/01 & BA 16/97(Amendment No.2).

There is no guidance in the Standards to determine when axle lift-off will occur. The TRL have recorded the load distribution on double axles crossing a number of humped-back bridges. These results have been used to estimate the effects of lift-off and a spreadsheet has been developed to determine the appropriate axle factor based on the road alignment over the bridge.

* MEXE Analysis download link provides freeware version of the software.

Similar Software
Effective Span Version:1.02 · David Childs
Effective Span

Effective Span of Plate Girder with no Bearing

The effective span and maximum bearing pressure for a plate girder with no specific bearing is calculated in accordance with BD 56/10 clause 16 and Figure 16. 1A

BEAMANAL Version:2.5 · Alex Tomanovich
BEAMANAL

Single-Span & Continuous-Span Beam Analysis

BEAMANAL is a MS-Excel spreadsheet workbook for the analysis of single-span beams (simple, propped, fixed, or cantilever) and continuous beams of up to 5 spans.

Influence Line Diagrams Version:1.04 · David Childs
Influence Line Diagrams

Influence Line Diagrams for Single or Multispan Decks

Influence Line diagrams for bending moments at critical sections in a single or multi-span continuous beam.

Line Beam Analysis for Moving Vehicle Loads Version:1.08 · David Childs
Line Beam Analysis for Moving Vehicle Loads

BS 5400, BD 21 and BD 86

Abnormal Load Vehicles, HB Vehicles, BD21 Annex D Vehicles and BD86 STGO Vehicles are analysed as moving loads across a single or multi-span continuous line beam to determine critical bending moments and shear forces.

Line Beam Analysis for Static Loads Version:1.06 · David Childs
Line Beam Analysis for Static Loads

Analysis for Static Loads and Settlement at Supports

Calculates bending moments and shear forces for loads on a single span or continuous multi-span beam using the moment distribution method.

Plane Frame Analysis for Static Loads Version:1.06 · David Childs
Plane Frame Analysis for Static Loads

Bending Moments, Axial and Shears Forces in a Plane Frame

A Plane Frame Analysis for bending moments, axial and shears forces in a plane frame structure under point loads, UDL's, linearly varying distributed loads (soil pressures) and moments.

Comments & Reviews About MEXE Analysis

No comments yet. Be the first to comment.

Submit a review using your Facebook ID

Rate This Software

MEXE Analysis has been rated 5.0 out of 5 points. A total of 2 votes cast and 0 users reviewed the software.
