CESDb > Structural Analysis > Line Beam Analysis for Moving Vehicle Loads

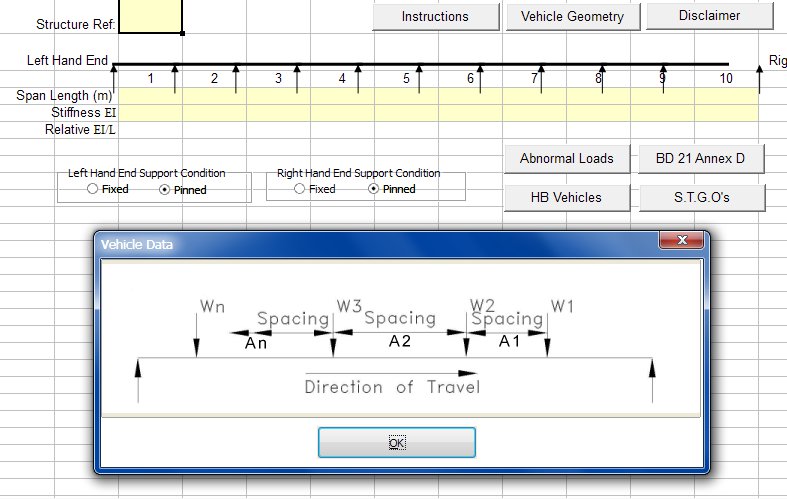

Line Beam Analysis for Moving Vehicle Loads screenshot
SOFTWARE :Line Beam Analysis for Moving Vehicle Loads
DEVELOPER :David Childs
VERSION :2.04
PLATFORM :Spreadsheet
FILE SIZE :0.33 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:2264
Line Beam Analysis for Moving Vehicle Loads Description

Abnormal Load Vehicles, HB Vehicles, BD21 Annex D Vehicles, the Standard Fatigue Vehicle and BD86 STGO Vehicles are analysed as moving loads across a single or multi-span continuous line beam to determine critical bending moments, maximum reactions and shear forces, with the facility to save the results. Abnormal load configurations may also stored in the workbook.

* Line Beam Analysis for Moving Vehicle Loads download link provides freeware version of the software.
