CESDb > Structural Analysis > Atlas

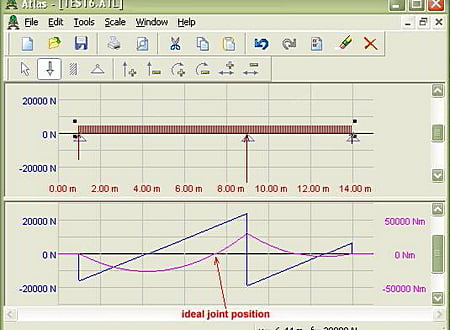

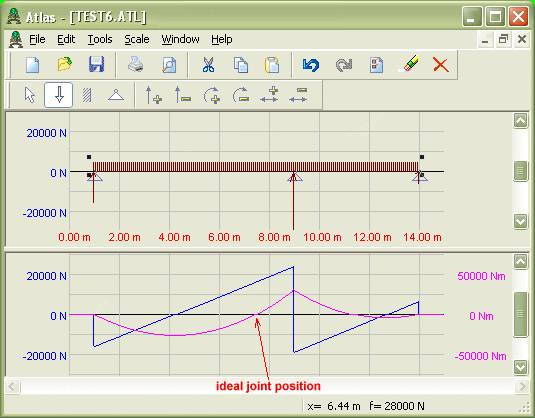

Atlas screenshot
SOFTWARE :Atlas
DEVELOPER :Rekenwonder Software
VERSION :2.0
PLATFORM :Windows
FILE SIZE :0.77 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:2935
Atlas Description

Atlas 2. 0 is a program targeted at architects and construction engineers.

Atlas computes the resulting moments and reaction forces for a given beam with loads applied to it (single as well as distributed), using Cross' method.

A typical application would be to optimize joint positions (i. e. positions with zero moment) in purlins or beams. The program has a very easy interface. It lets you enter your data with the mouse, and it shows the resulting moments and shear forces immediately in both a graphical and numerical way. Maximum bending moments can easily be calculated.

* Atlas download link provides freeware version of the software.
