· · RISAConnection

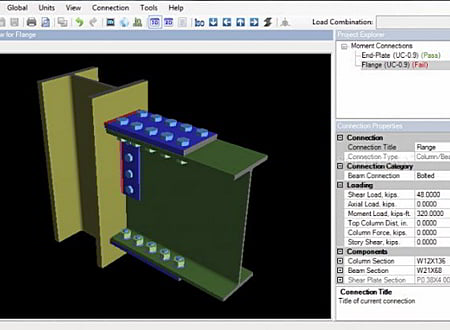

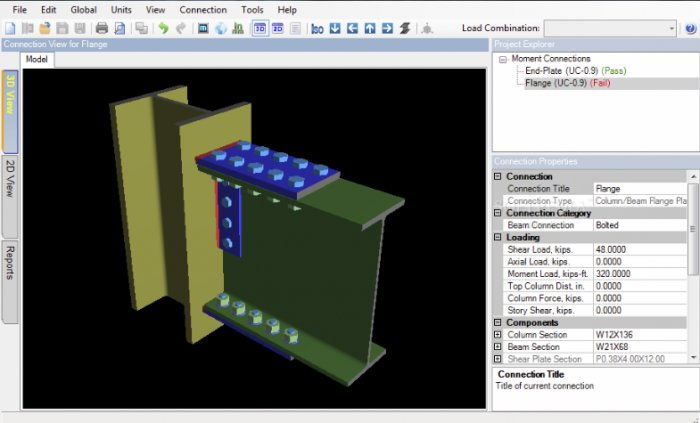

RISAConnection screenshot
Software :RISAConnection
Version :4.0
Last Update :28 May 2014
Platform:Windows
File Size :184.06 MB
License :Demo
Downloads :UserDownloads:526
RISAConnection Description

RISAConnection is a useful program designed to assist engineers in finishing steel structures by creating welds and connections between the elements. The program uses a visual approach but you can also enter data by editing the design spreadsheets. You can use the program to inspect the design in a 3D view and to modify the dimensions in the 2D panel. Both views can be exported and printed in order to use them in your project documentation.

RISAConnection takes the complexity out of calculations by listing explicitly the calculations and the code check values. Review your results in an easy-to-read report or inspect the connection in a 2D shop drawing-style drawing.

RISAConnection allows you to quickly build steel connections using a quick connection dialog box with pictures and descriptions.

Review your connection in an interactive 2-dimensional picture or view it fully rendered in 3-D. The rendered view allows you to rotate 360 degrees to see the entire connection.

In RISAConnection, you can use the AISC 360-05 for either ASD or LRFD design to check any size connection. The RISAConnection output has fully comprehensive engineering calculations with code references, making it easy to understand the code check.

* RISAConnection download link provides demo version of the software.
* Keywords: beam weld, connection model, beam structure, steel structure, weld, aisc 360-05, asd, lrfd
