· · MITCalc Beam Calculation

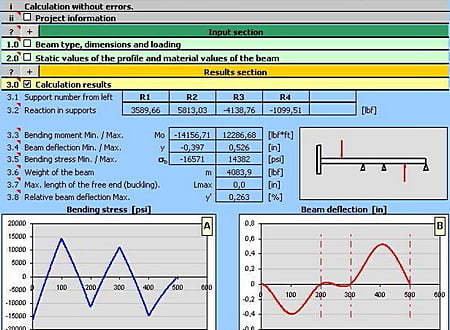

MITCalc Beam Calculation screenshot
Software :MITCalc Beam Calculation
Developer :MITCalc
Version :1.19
Last Update :28 August 2014
Platform:Windows / Spreadsheet
File Size :1.67 MB
License :Trial
Downloads :UserDownloads:993
MITCalc Beam Calculation Description

The application is designed for calculations of straight, maximum three times static indefinite beams with constant axis-symmetrical profiles. Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the following main tasks:

  • Simple definition of the type of beam and its loading with visual check.
  • Calculation of area characteristics of 20 types of cross sections
  • Calculation of reactions in supports.
  • Calculation of minimum / maximum bending moment, stress and deflection of the beam.
  • Calculation and graphic illustration of the moment, stress, deflection and bending angle of the loaded beam.

The application includes a table of materials and a table of area characteristics of W, S, C, L profiles acc. to ANSI/AISC and I, U, L a T profiles acc. to DIN/ISO. Used standards: DIN 1025, 1026, 1028, 1029, 1024, AISC W, S, C, L, LUThis module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others

* MITCalc Beam Calculation download link provides trial version of the software.
* Keywords: beam, beam calculation, straight beam, moment, stress, deflection, bending angle, din 1025
