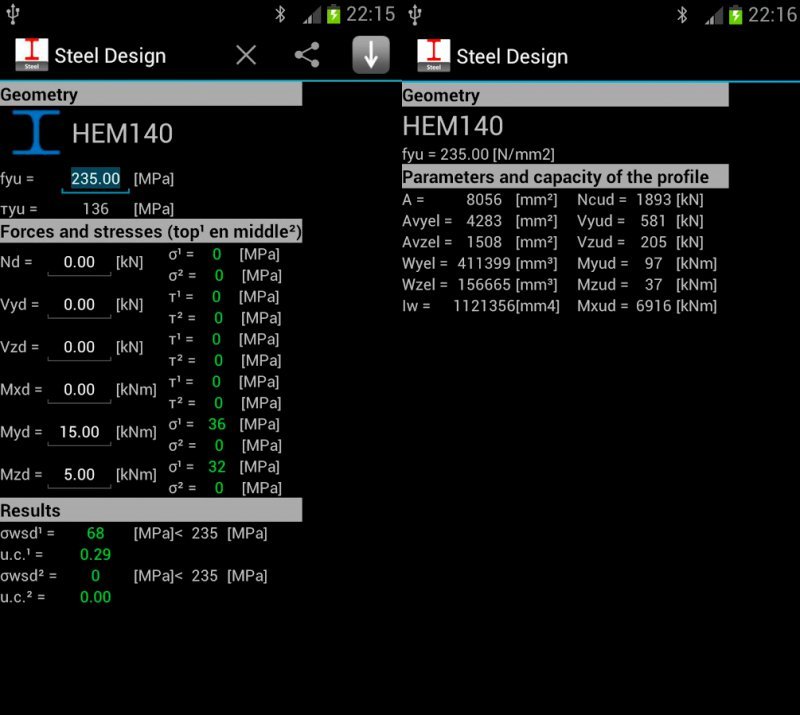

SteelDesign screenshot
SOFTWARE :SteelDesign
DEVELOPER :LetsConstruct
VERSION :0.28
PLATFORM :Android
FILE SIZE :0.49 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:516
SteelDesign Description

This Steel Design App lets you determine the elastic stresses at the top and in the middle of a beam, given the forces on the beam based on the theory of Huber-Hencky. Axial force, double shear and double bending are included.

Features:

  • Input Mx, My, Mz
  • Both US and metric units
  • Select an arbitrary beam from our Engineering Libraries app
  • Outputs stresses and unity check
  • Integration with our Frame Design 2D app.
  • Export possibilities
  • Graphs

* SteelDesign download link provides freeware version of the software.
