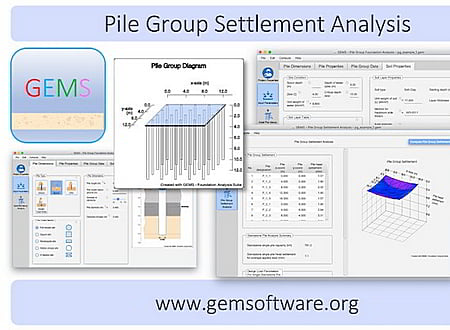

Pile Group Settlement Analysis screenshot
SOFTWARE :Pile Group Settlement Analysis
DEVELOPER :GEM Software
VERSION :1.0.0
PLATFORM :Windows / Mac / Online
FILE SIZE :93.5 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:10

Pile Group Settlement Analysis Description

Piles are often used in groups to carry greater loads to deeper, stronger soil strata. For the same average load per pile, groups settle more than single piles due to overlapping of deformations in the soil medium.

The GEMS – Pile Group Settlement Analysis software uses modern analytical techniques based on the subsurface soil profile, pile dimensions and group geometry to estimate the pile group settlement. The software can also be used to choose pile length, cross-section, and pile spacing towards optimizing the group design.

Key Features

  • One Click Computation: One click computation for pile capacity, design load estimation and pile group settlement
  • Pile Cap: Rigid cap & Flexible cap piles can be analysed.
  • Rigid Cap Analysis: Group settlement, pile cap rotation and individual pile loading for pile group with rigid cap. 3D graphical representation of pile loading.
  • Pile Capacity & Load Estimation: Axial single pile capacity & design load estimation
  • Flexible Cap Analysis: Individual pile settlement for pile group with flexible cap. 3D graphical representation of pile settlement.
  • System of Units: Data can be input in either SI units or ‘Commonly used American units’ (Kips for force and foot for length)
  • Single Pile: Single pile settlement under design load
  • Pile Group Diagram: 3D representation of the pile group
  • Pile group cross-section diagram: Pictorial representation of the pile and soil layers.
  • Site Condition: Local scour and ground water table consideration. Clay, sand, rock layers can be specified
  • Export: Export results to Microsoft Word & Excel
  • OS Support: Support for Windows & Mac
  • Cloud: Available on cloud using a browser
  • Analysis Models: Linear & Non-linear analysis models

* Pile Group Settlement Analysis download link provides trial version of the software for Windows and Mac.
