> > BoltGroup

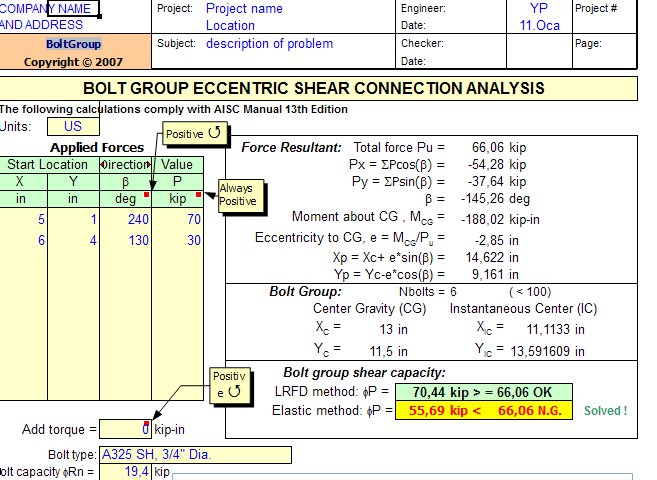

BoltGroup screenshot
SOFTWARE :BoltGroup
DEVELOPER :Yakov Polyakov
VERSION :2016
PLATFORM :Spreadsheet
FILE SIZE :0.13 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:1054
BoltGroup Description

BoltGroup computes shear capacity of an eccentrically loaded bolted connection using LRFD instantaneous center of rotation method. Great tool for design of gusset plates and plate girder bolted splices. The analysis results have been verified with AISC tables. Spreadsheet provides design summary, detailed results, and fundamental theory and formulas.

Capabilities:

  • irregular bolt patterns
  • LRFD and elastic methods by AISC Manual 13th Edition
  • allows multiple in-plane forces and torque
  • SI and US units

* BoltGroup download link provides demo version of the software.
