CESDb > Structural Analysis > WeldGroup

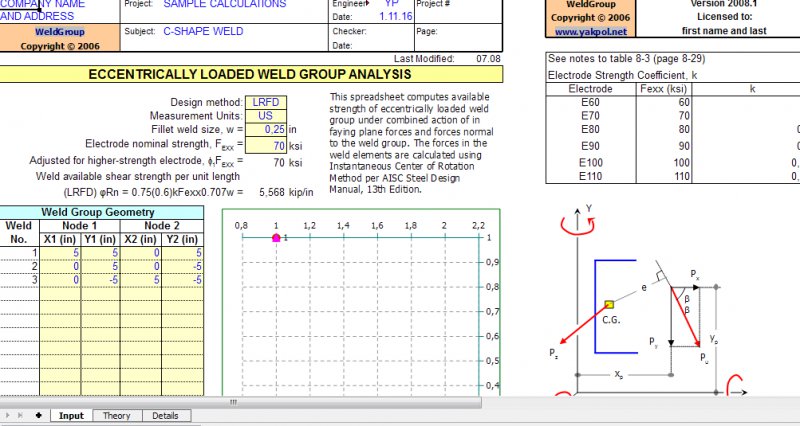

WeldGroup screenshot
SOFTWARE :WeldGroup
DEVELOPER :Yakov Polyakov
VERSION :2016.11
PLATFORM :Spreadsheet
FILE SIZE :0.33 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:1172
WeldGroup Description

WeldGroup computes available strength of eccentrically loaded weld group under combined action of in faying plane forces and forces normal to the weld group. The forces in the weld elements are calculated using Instantaneous Center of Rotation Method per AISC Steel Design Manual, 13th Edition. Spreadsheet provides design summary, detailed results, and fundamental theory and formulas.

Capabilities:

  • irregular weld patterns
  • LRFD and elastic methods by AISC Manual 13th Edition
  • allows multiple in-plane and normal to faying plane forces
  • SI and US units

* WeldGroup download link provides demo version of the software.
