CESDb > Structural Design > Analysis3D

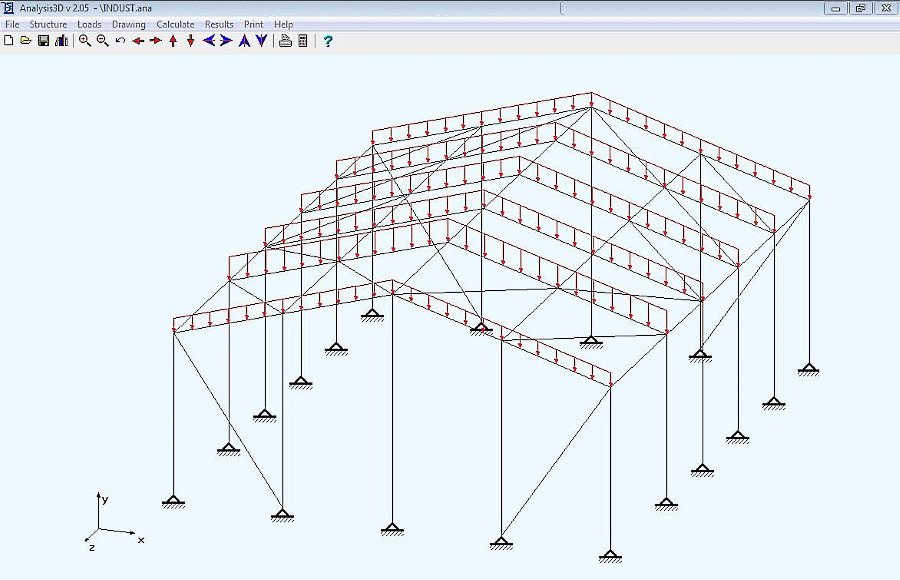

Analysis3D screenshot
SOFTWARE :Analysis3D
VERSION :2.11
PLATFORM :Windows
FILE SIZE :4.54 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:1722
Analysis3D Description

Analysis3D calculates two- and three-dimensional Trusses and Frames. These structures consist of long slender Members that are supposed to behave linear elastic. Before entering a construction, be sure to determine whether the structure is a Frame or a Truss and whether the structure has 2 or 3 dimensions. You can also choose the Units.

Small and easy to use, with a user friendly Windows interface to make your life easy. Large library of commonly used sections included (AISC, British Steel, DIN, Euronorm). Structural Steel Design includes: Plastic Design,   Elastic Design and Eurocode 3.

First enter the Joint coordinates. Members can only be entered when the Joints are given. Joints, Members and all other structure data can be entered with the Menu Structure or interactively, by means of the mouse. A number of drawing buttons simplify the drawing control. When the construction is fully described, you can calculate the structure and view the results.

Each cross-section is tested for:

  • Plastic Tension or Compression
  • Bending moment (major and minor axis)
  • Plastic Shear resistance
  • Torsion (Saint Venant and Warping torsion)
  • Reduced plastic shear resistance for the case of combined Torsion and Shear.
  • Reduced moment resistance for the case of combined Bending and Shear
  • Reduced plastic moment resistance for the case of combined Banding and Axial force or bi-axial bending
  • Compression buckling
  • Lateral Torsional buckling
  • Combined bending and axial compression (Chen and Atsuta)
  • Maximum deflection

The Joint Displacements are shown automatically. Members that fail the requirements for Member Stress or Buckling are indicated in red. The course of Axial Forces, Shear Forces, Torsion, Bending Moments and Deflection can be viewed with the Result Menu option NTM-Forces. All compressed members are tested for Buckling.

* Analysis3D download link provides freeware version of the software.
