It can be used for a wide range of engineering projects and includes support design, finite element slope stability, groundwater seepage and probabilistic analysis.

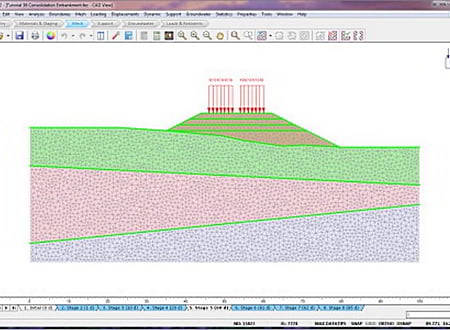

Complex, multi-stage models can be easily created and quickly analyzed - tunnels in weak or jointed rock, underground powerhouse caverns, open pit mines and slopes, embankments, MSE stabilized earth structures, and much more. Progressive failure, support interaction and a variety of other problems can be addressed.
Phase2 offers a wide range of support modeling options. Liner elements can be applied in the modeling of shotcrete, concrete, steel set systems, retaining walls, piles, multi-layer composite liners, geotextiles and more. Liner design tools include support capacity plots which allow you to determine the safety factor of reinforced liners. Bolt types include end anchored, fully bonded, cable bolts, split sets and grouted tiebacks.
One of the major features of Phase2 is finite element slope stability analysis using the shear strength reduction method. This option is fully automated and can be used with either Mohr-Coulomb or Hoek-Brown strength parameters. Slope models can be imported / exported between Slide and Phase2 allowing easy comparison of limit equilibrium and finite element results.
Phase2 includes steady state, finite element groundwater seepage analysis built right into the program. There is no need to use a separate groundwater program. Pore pressure is determined as well as flow and gradient, based on user defined hydraulic boundary conditions and material conductivity. Pore pressure results are automatically incorporated into the stress analysis.
* RS2 download link provides trial version of the software.
3D Finite Element Analysis for Rock and Soil
RS3 is a 3D finite element analysis program that can be used for a wide range of applications in both rock and soil, such as underground excavations, sequenced tunneling, surface excavations, slope stability, seepage analysis, consolidation analysis, and much more.
2D Stress Analysis for Underground Excavations
Examine2D is a 2-dimensional plane strain indirect boundary element program for the elastic stress analysis of underground excavations.
3D Engineering Analysis for Underground Excavations
EX3 is an engineering analysis program for underground excavations in rock.
3D Surface Wedge Analysis for Slopes
Swedge is a quick, interactive and simple to use analysis tool for evaluating the geometry and stability of surface wedges in rock slopes.
Planar Sliding Stability Analysis for Rock Slopes
RocPlane is an interactive software tool for performing planar rock slope stability analysis and support design.
