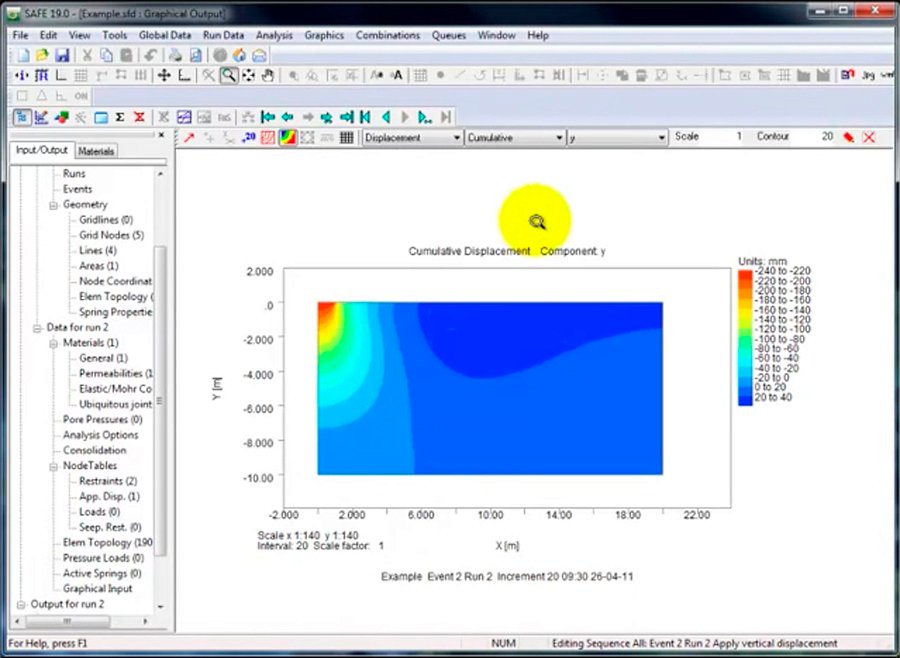

Oasys Safe screenshot
SOFTWARE :Oasys Safe
DEVELOPER :Oasys
VERSION :19.1
PLATFORM :Windows
FILE SIZE :45.76 MB
LICENSE :Trial
DOWNLOADS :UserDownloads:7
Oasys Safe Description

Solve your geotechnical problem with powerful two-dimensional geotechnical finite element design software

Whether you need to do two-dimensional finite element computations in plane stress, plane strain, or axial symmetry, Safe takes care of it. The smart geotechnical finite element analysis software identifies pore pressures and effective stresses separately and includes gravitational loads and initial stresses.

Feature

  • Analysis of plane stress, plane strain or axially symmetric problems. General loading of linear elastic axisymmetric structures can be carried out using a Fourier series technique.
  • Linear or non-linear behaviour
  • Gravity loading
  • Pore pressures and effective stresses are identified separately, allowing computation for drained or undrained conditions, and time dependent consolidation
  • Incremental loading and changes of material properties, permitting the formation of excavations, embankments etc.
  • Intermediate results can be stored and inspected before the problem is continued further.
  • Pressure (distributed) and line loading
  • Fixed or spring restraints
  • 8 noded quadrilateral elements. These can be curvilinear
  • Consolidation problems
  • Wells
  • Seepage and flow
  • Extensive graphical input options and in-built mesh generation facility
  • Wide range of graphical output and printing facilities

* Oasys Safe download link provides trial version of the software.
