· · CADRE Zipwire

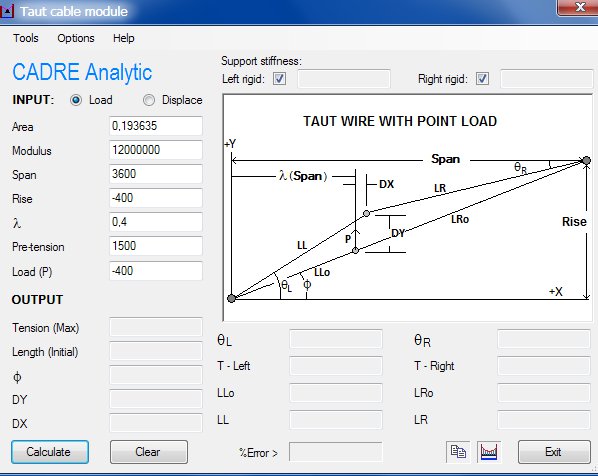

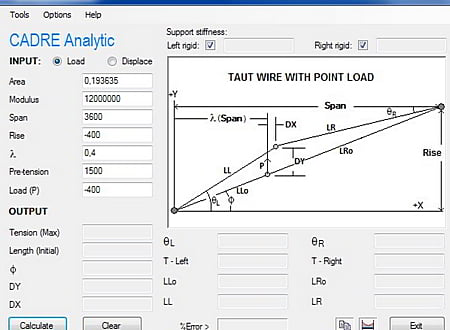

CADRE Zipwire screenshot
Software :CADRE Zipwire
Developer :CADRE Analytic
Version :3.0
Last Update :4 January 2016
Platform:Windows
File Size :1.13 MB
License :Trial
Downloads :UserDownloads:84
CADRE Zipwire Description

CADRE Zipwire is a tool that can be used to analyze taut elastic wires or cables with a point load. Zipwire solves a class of the hanging or taut cable problem using basic classical geometry and static analyses along with elastic considerations.

Zipwire was initially developed as a free auxiliary application for users of CADRE Pro but by popular interest has now been made commercially available to others for separate purchase.

Zipwire has two modules of operation

  • Analysis of taut wire systems (with or without flexible supports)
  • Analysis of suspension cable systems (catenary or parabolic)
* CADRE Zipwire download link provides trial version of the software.
* Keywords: elastic wire, cable, point load, taut cable, hanging cable, taut wire, cable system, suspension cable
