CESDb > Structural Analysis > STIFFNER

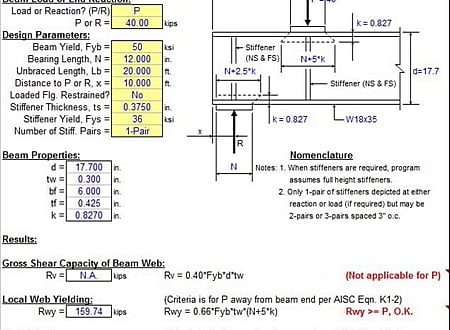

STIFFNER screenshot
SOFTWARE :STIFFNER
DEVELOPER :Alex Tomanovich
VERSION :2.5
PLATFORM :Spreadsheet
FILE SIZE :0.08 MB
LICENSE :Freeware
DOWNLOADS :UserDownloads:5913
STIFFNER Description

STIFFNER is a spreadsheet program written in MS-Excel for the purpose of analysis of steel beams subject to concentrated loads. Specifically, web yielding, web crippling, and web buckling criteria are checked to determine if web stiffeners are required to resist the concentrated load. If stiffeners are required, the stiffener size and weld requirements are determined.

Program Assumptions and Limitations:

1. This program follows the procedures and guidelines of the AISC 9th Edition Allowable Stress (ASD) Manual for wide flange beams subjected to concentrated compressive loads per Chapter K, pages 5-80 to 5-83.

2. This program uses the database of member dimensions and section properties from the "AISC Shapes Database", Version 3.0 (2001) as well as the AISC 9th Edition (ASD) Manual (1989).

3. For the purpose of determining the total composite section to be considered for resisting the compressive load, the program assumes a spacing of 3" center-to-center between the stiffener pairs.

* STIFFNER download link provides freeware version of the software.
