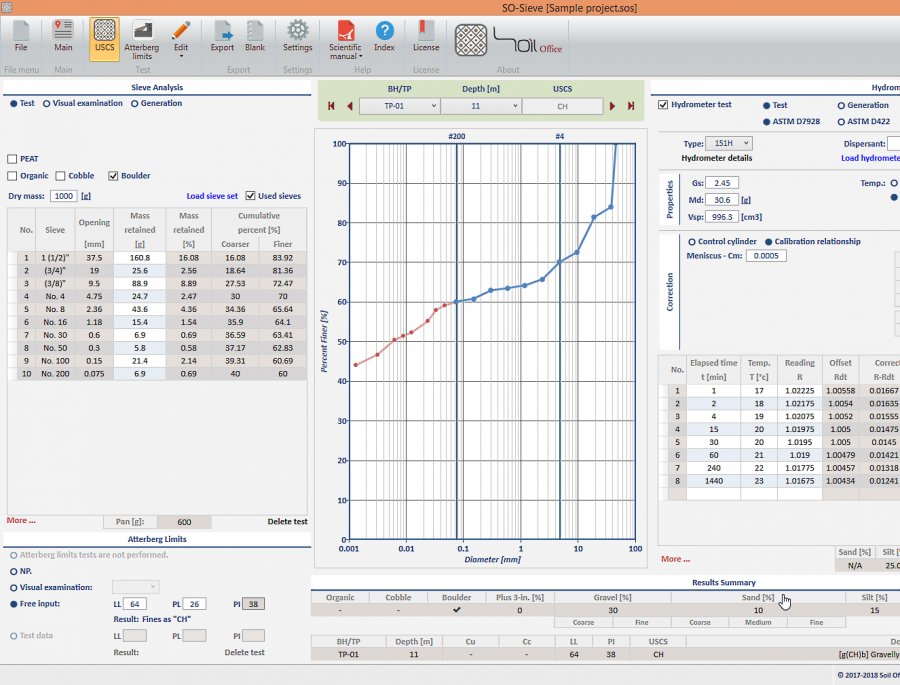

SO-Sieve screenshot
SOFTWARE :SO-Sieve
DEVELOPER :Soil Office
VERSION :1.0
PLATFORM :Windows
FILE SIZE :14.37 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:628
SO-Sieve Description

SO-Sieve having a user-friendly interface, includes sieve analysis, hydrometer and Atterberg limits tests. It also presents soil type based on USCS (Unified Soil Classification System).

Sieve analysis and Atterberg limits may either be determined by test results or visual examination. Hydrometer test can be calculated using both ASTMD7928 and ASTMD422 (withdrawn 2016) standards. Note that sieve analysis and hydrometer tests could randomly be generated based on user-defined criteria.

General features

  • User is informed about the common ranges regarding input parameters.
  • Software outputs are exported in both landscape and portrait formats.
  • Test data and corresponding calculations are presented in a separate format.
  • Blank laboratory data sheets may be used for test data input.
  • Saving files with a minimal size.

Sieve analysis

  • Visual examination may be used for the determination of particle-size distribution.
  • Random generation of sample sieve analysis tests based on user-defined criteria.
  • Various sieve sets may be defined and used when needed.
  • Test data can be edited using either graph or input table.

Hydrometer test

  • Random generation of sample hydrometer tests based on user-defined criteria.
  • Hydrometer calculation using ASTM D7928:
  • Hydrometer calculation using ASTM D422:

Atterberg limits tests

  • Visual examination may be used for the determination of soil type according to plasticity chart.
  • User is warned when ASTM?D4318 regulations are not satisfied.

* SO-Sieve download link provides demo version of the software.
