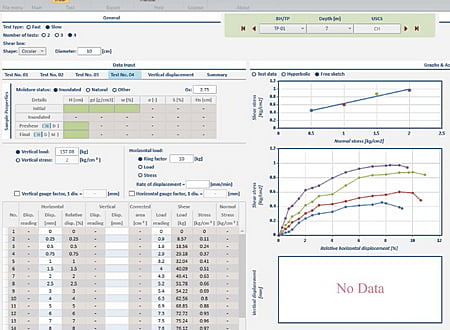

SO-Shear screenshot
SOFTWARE :SO-Shear
DEVELOPER :Soil Office
VERSION :1.0
PLATFORM :Windows
FILE SIZE :15.84 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:823
SO-Shear Description

SO-Shear is aimed at the evaluation of direct shear tests. It has a user-friendly interface and lots of smart capabilities are implemented. Individual tabs are assigned for project information (including basic information, borings and samples) and tests. In addition to test data and corresponding calculations, software outputs are available in 12 formats. Note that direct shear tests could randomly be generated based on user-defined criteria.

General features

  • User is informed about the common ranges regarding input parameters.
  • 12 templates are available for the export of software outputs.
  • Test data and corresponding calculations are presented in a separate format.
  • Blank laboratory data sheets may be used for test data input.
  • Saving files with a minimal size.

Direct shear test calculations

  • Sample properties are automatically calculated.
  • Various data input options.
  • Area correction can be applied.
  • Test data can be edited using either graphs or tables.
  • Random generation of direct shear tests based on user-defined criteria

* SO-Shear download link provides demo version of the software.
