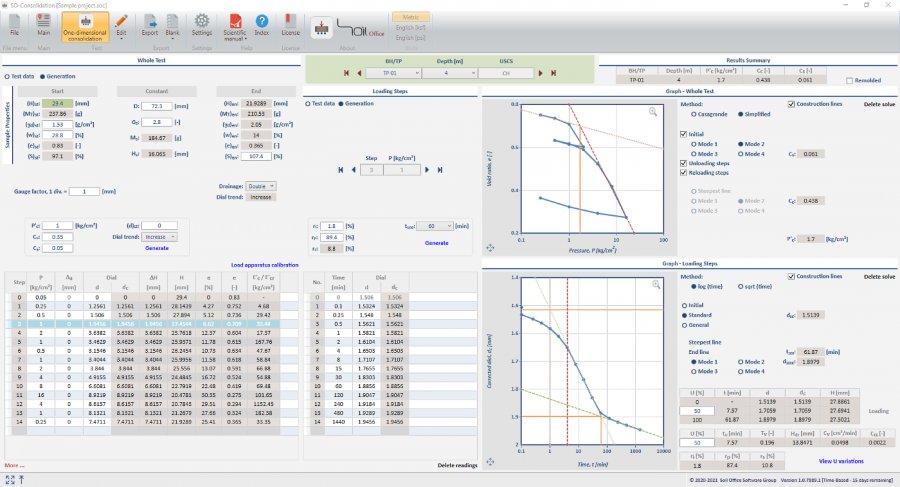

SO-Consolidation screenshot
SOFTWARE :SO-Consolidation
DEVELOPER :Soil Office
VERSION :1.0
PLATFORM :Windows
FILE SIZE :21.56 MB
LICENSE :Demo
DOWNLOADS :UserDownloads:35
SO-Consolidation Description

SO-Consolidation is aimed at the evaluation of one-dimensional consolidation tests. Individual tabs are assigned for project information (including basic information, borings and samples) and tests. In addition to test data and corresponding calculations, software outputs are presented in both landscape and portrait formats.

In order to obtain coefficient of consolidation and secondary compression index, each loading step can be analyzed by two methods, logarithm and square root of time. Also, the Casagrande and the simplified methods can be employed for the determination of final results including preconsolidation stress and compression and swelling indices. Each interpretation method is accompanied by a variety of capabilities and in addition to being automatic, can be modified by the user.

General features

  • Supports "Metric", "English [ksf]" and "English [psi]" units.
  • User is informed about the common ranges regarding input parameters.
  • Separate outputs are considered regarding the "whole test" and the "loading steps".
  • Software outputs are exported in both landscape and portrait formats.
  • Test data and corresponding calculations are presented in a separate format.
  • Blank laboratory data sheets may be used for test data input.
  • Saving files with a minimal size.

* SO-Consolidation download link provides demo version of the software.
